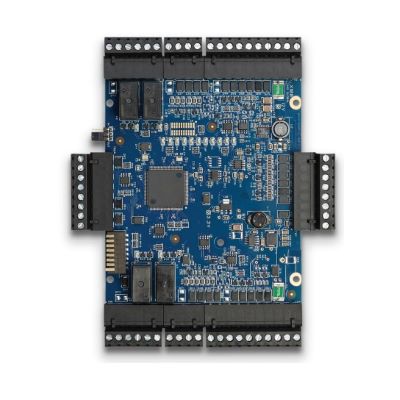

HID Aero Door/Reader Interface Module

Name: HID Aero Door/Reader Interface Module
Brand: Alarm.com
SKU: ADC-AC-X100
Rating: 5 (1 reviews)

Item # ADC-AC-X100

Manufacturer Item # ADC-AC-X100

Sold As: ea
Special Order

More Products from Alarm.com

Add to Shopping List

Save For Later

Overview

HID Aero Door/Reader Interface Module

The X100 Two Reader Expansion Module adds support for two additional readers with four relay outputs and four programmable inputs to an Alarm.com X1100 Door Controller. For larger commercial installations, up to 31 X100 expansion modules can be connected together to manage up to 64 doors using a single X1100 Door Controller.

Features:

Provides all I/O needed for two additional doors
Two dedicated reader inputs
Four relay outputs
Four programmable inputs
For use with X1100 Door Controller only
Connect up to 16 expansion modules per expansion port, up to 31 expansion modules total

Specifications

Product Name	HID Aero Door/Reader Interface Module

Brand Name	Alarm.com

Mfg #	ADC-AC-X100

Cube	63 cu in

Length	5.51 in

Width	6.46 in

Height	1.02 in

Operating Voltage	12 - 24 VDC

Output Voltage	12 VDC

Documents

ADC-AC-X100.PDF
