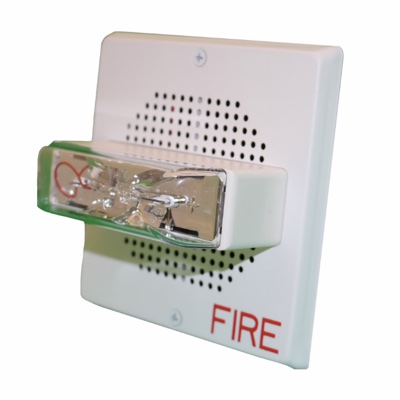

Name: 24 VDC Wall-Mount ET70 Speaker Strobe - White
Brand: Wheelock
SKU: WHET7024MCWFW
Rating: 5 (1 reviews)

Overview

24 VDC Wall-Mount ET70 Speaker Strobe - White

Eaton Wheelock E70/E90 speaker strobe, 1/8 to 8 watts, xenon, wall, white, FIRE, clear lens, 15/30/75/110 cd, 25/70V, indoor

Features:

Approvals include: UL Standard 1971, UL Standard 1480, New York City (MEA), California State Fire Marshall (CSFM), Factory Mutual (FM), and Chicago (BFP) See approvals by model in Specifications and Ordering Information
ADA/NFPA/UFC/ANSI compliant
Meets OSHA 29 Part 1910.165
Wall mount models are available with Field Selectable Candela Settings of 15/30/75/110cd or 135/185cd (Multi-Candela models) or 1575cd (Single Candela model)
Strobes produce 1 flash per second over the regulated voltage range
24 VDC with wide UL “Regulated Voltage” using filtered DC or unfiltered VRMS input voltage
Synchronize with sync modules or panels with built-in Wheelock Patented Sync Protocol
Field selectable taps for 25 or 70 VRMS operation from 1/8 watt to 8 watts
High efficiency design for maximum output at minimum wattage across a frequency range of 400 to 4000 HZ
Fast installation with IN/OUT screw terminals using #12 to #18 AWG wires

Specifications

Product Name	24 VDC Wall-Mount ET70 Speaker Strobe - White

Brand Name	Wheelock

Mfg #	ET70-24MCW-FW

Cube	71.33 cu in

Length	2.70 in

Width	5.14 in

Height	5.14 in

Weight	1.83 lbs

UPC	786697090219
