Home » Fire » Horns & Strobes
Pixel Trans

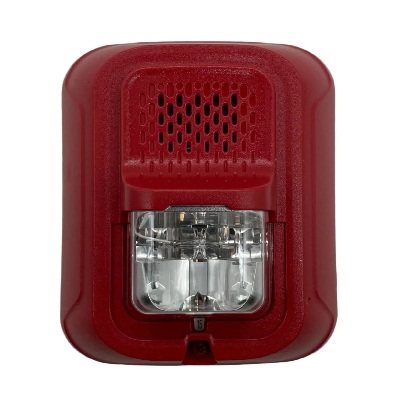

L-Series with LED Indoor Wall Chime Strobe, Red System Sensor CHSRLED
View Larger

L-Series with LED Indoor Wall Chime Strobe, Red

Item # CHSRLED
Manufacturer Item # CHSRLED

Log In To View
Prices		 Pixel Silver
Sold As: ea
Special Order
Pixel Trans
Pixel Trans
System Sensor
More Products from System Sensor 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Product Bookmark  Share
Report Incorrect
Pixel Trans

Overview

Pixel Trans
L-Series with LED Indoor Wall Chime Strobe, Red
Pixel Trans
The L-Series and L-Series with LED line is developed to simplify installation. All devices feature plug-in designs with minimal intrusion into the back box, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults. The universal mounting plate includes an onboard shorting spring, so installers can test wiring continuity before the device is installed.

Features:
  • LED technology provides lower current draw
  • Digital Voltage Meter (DVM) diagnostic test points for Horn Strobes and Strobes
  • Field-selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, and 185
  • Field-selectable candela settings on ceiling units: 15, 30, 75, 95, 115, 150, and 177
  • Rotary switches for candela, tone and volume selections
  • Mounting plate provides plug-in design for easier installation and shorting springs to check wiring continuity.
  • Electrically compatible with legacy SpectrAlert, SpectrAlert
  • Advance and L-series devices
  • Synchronization through use of UL approved power supplies that support System Sensor Sync protocol or System Sensor MDL Sync Module
  • Common aesthetics across the L-Series platform

Specifications

Pixel Trans
  Product NameL-Series with LED Indoor Wall Chime Strobe, Red
Pixel Silver
  Brand NameSystem Sensor
Pixel Silver
  Mfg #CHSRLED
Pixel Silver
  Cube90 cu in
Pixel Silver
  Length4.70 in
Pixel Silver
  Width2.07 in
Pixel Silver
  Height5.67 in
Pixel Silver
  Candela15 - 185
Pixel Silver
  ColorRed
Pixel Silver
  Sound Output (dB)55 - 78 dBA
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf CHSRLED-Datasheet.pdf
