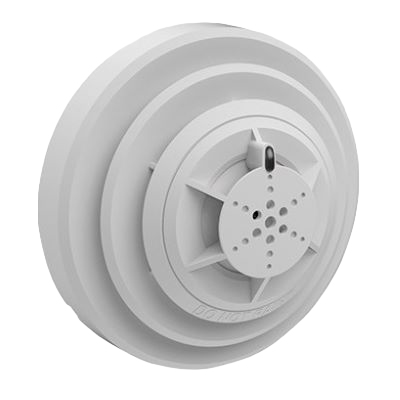

PAD300-PHD Photoelectric Smoke/Heat Detector

The PAD300-PHD is a listed Analog Addressable smoke detector and a rate of rise and/or fixed temperature heat detector compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. The PAD300-PHD is a low profile smoke/heat sensor with a wide sensitivity range. The heat sensing portion utilizes a proven thermistor for accurate and reliable heat detection. The detector and base are made of a durable plastic in an off-white color to blend in with the ceiling. The PAD300-PHD is UL listed and has a sensitivity range of 1.1 to 3.5% per foot with a fix temperature alarm threshold of 135°F and can be used for rate of rise applications. The PAD300-PHD features drift compensation and has built in dirty detector warning. The PAD300-PHD is addressed using DIP switches in the rear of the detector and can be easily programmed in the field without special tools.

Features:

• Photoelectric Smoke Detection compliant with UL 268 7th Edition
• Selectable Rate of Rise and/or Fixed Heat Detector
• Reliable detection technology
• Wide selectable smoke sensitivity range of 1.1 to 3.5%/foot
• Detector communicates sensitivity to control panel
• UL listed smoke calibration and sensitivity
• Ambient temperature listing of 32 ° F to 115 ° F
• Optional locking tab to prevent unwanted removal
• Simple DIP switch address setting, no programming tool required
• LED alarm indicator
• Magnetic test switch
• Product includes 5-year warranty
• UUKL Listed for Smoke Control
