Home » Fire » Control Panels » Accessories

View Larger

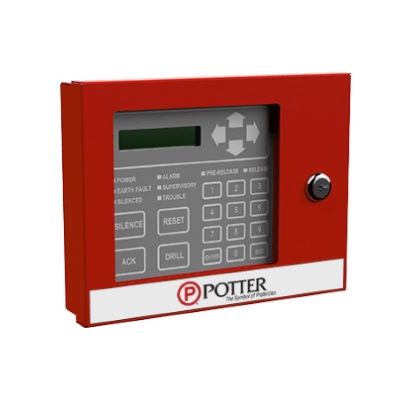

32 Character LCD Remote Annunciator

Name: 32 Character LCD Remote Annunciator
Brand: Potter
SKU: RA-6075
Rating: 5 (1 reviews)

Item # RA-6075

Manufacturer Item # RA-6075

Sold As: ea

More Products from Potter

Add to Shopping List

Save For Later

Overview

32 Character LCD Remote Annunciator

The RA-6075 is a LCD remote annunciator for the PFC-6075 and PFC-6030 addressable fire control panel. The RA-6075 communicates using a RS-485 connection to the main panel providing common indication of Alarms, Supervisory, Trouble and other system status and control functions.

The RA-6075 features a 32 character, 16x2 LCD display with LED's for Power, Alarm, Supervisory, Trouble, and Silenced conditions. It can be mounted on a single gang electrical box or a four square electrical box. The annunciator is enclosed in a sheet metal enclosure and has a Potter lock securing the keypad.

Features:

Standby Current 20 mA
Alarm Current 25 mA
Operating Temperature 0°C-49°C (32°F-120°F) 10%-93%
@ 30°C (86°F) non-condensing
humidity
Maximum Wire Length 6500 FT
Maximum Annunciators 31
Dimensions (WxHxD) 8” x 6-1/4” x 1-5/8” (Cabinet)
Wire Gauge 14 AWG-22 AWG
Display 2 lines x 16 characters

Specifications

Product Name	32 Character LCD Remote Annunciator

Brand Name	Potter

Mfg #	RA-6075

Cube	81.25 cu in

Length	8.00 in

Width	6.25 in

Height	1.63 in

Documents

RA-6075.pdf
