Name: Fail-Safe Electric Deadbolt
Brand: Seco-Larm
SKU: SD-997B-GBQ
Rating: 5 (1 reviews)

Overview

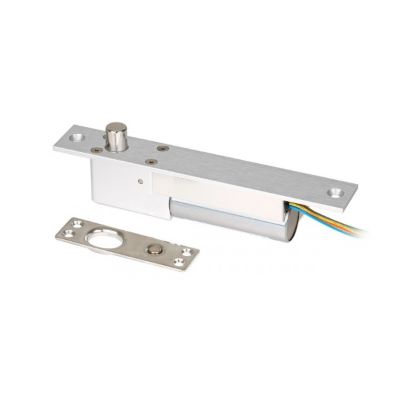

Fail-Safe Electric Deadbolt

Fail-safe Electric Deadbolt, for concealed deadbolt security. Door unlocks when power is lost. Dual voltage: 12/24 VDC.

Features:

Stainless steel bolt, 5/8" diameter, 5/8" throw
Fail-safe operation (unlocks if power is lost)
Magnetic switch senses door position for positive locking
Includes control wire which allows for releasing without cutting unit's power
Attempts to relock multiple times and then shuts off if the door is not closed properly to prevent solenoid from burning out. Once door is closed properly, will automatically lock
Over-current protection 1.5A
Door open/close monitor (NO/NC/COM)
Adjustable door lock delay timer (0, 2.5, 5, or 9 seconds)
Use with an optional digital keypad for high security without a key. Easily connects to SECO-LARM Digital Keypads
Suitable for office-type applications
Shallow design for use with most metal door jambs
Multi-directional horizontal or vertical mounting
Powered by a solenoid
Stainless steel for strength and long life
Plug: Special conic cavity stainless steel (thickness 1.5mm-1.8mm)

Fail-Safe Electric Deadbolt
