Home » Infrastructure » Connectors & Plates » Data

View Larger

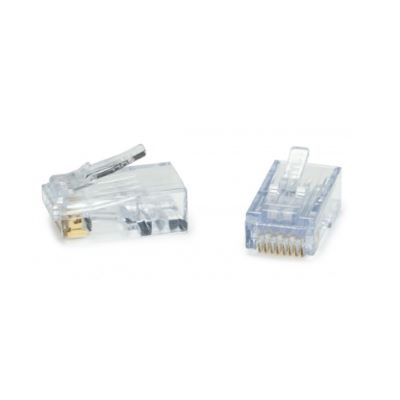

ezEX48 Connectors - 50/Clamshell

Name: ezEX48 Connectors - 50/Clamshell
Brand: Platinum Tools
SKU: PT-100029C
Rating: 5 (1 reviews)

Item # PT-100029C

Manufacturer Item # 100029C

Sold As: EA

More Products from Platinum Tools

Add to Shopping List

Save For Later

Overview

ezEX48 Connectors - 50/Clamshell

The patented ezEX48 connectors feature a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6A (Lg. Cat6) cabling and is recommended for PoE/PoE+ and Data applications. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).

The 100029C is ezEX48 connectors, 50/Clamshell.

Features:

Hi-Lo stagger isolates each conductor for higher performance
Simple one piece/pass through design, no bars or liners
Insulation Diameter (Conductor) Size range: .043” – .048” (1.09 –1.22mm)
Max outer diameter: .290” (7.36mm)
50 micron gold plated contacts
Solid or Stranded 23-22 AWG
TIA, TAA, RoHS, UL & FCC compliant
Typically used with Cat6A & Lg Cat6

Specifications

Product Name	ezEX48 Connectors - 50/Clamshell

Brand Name	Platinum Tools

Mfg #	100029C

Cube	126 cu in

Family	Cat 6

UPC	849160008637

Documents

100029C.pdf
