Home » Audio & Video » Video Handling » Splitters

View Larger

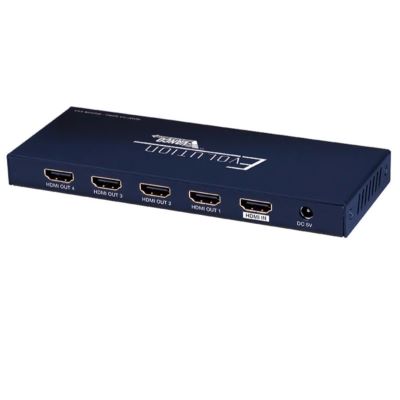

Evolution Premium 4K HDMI® 1x4 Splitter

Name: Evolution Premium 4K HDMI® 1x4 Splitter
Brand: Evolution by Vanco
SKU: EVSP4K14
Rating: 5 (1 reviews)

Item # EVSP4K14

Manufacturer Item # EVSP4K14

Sold As: ea

More Products from Evolution by Vanco

Add to Shopping List

Save For Later

Overview

Evolution Premium 4K HDMI® 1x4 Splitter

Slim HDMI 1x4 4K Splitter 4K/60Hz HDR HDCP2.2.

Features:

Transmits audio and video from a single source to 4 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution
Supports video formats up to 4K2K@60Hz with 12bit YCBCR 4:4:4 and HDR
3D frame sequential video format up to 1080p@60
Supports high resolution VESA mode video format up to QSXGA 2560×2048@60Hz
Compliant with HDCP 2.2 sources and backwards compatible with older versions of HDCP
Dynamic and Manual EDID management modes to ensure compatibility during installation
Supports LPCM 7.1CH- Dolby TrueHD- and DTS-HD Master Audio
Supports Hot-plug
High bandwidth: 18 Gbps
Features status indicator for connection & input HDCP compliance
Can be cascaded with other Evolution by Vanco products to create additional output options or to create an expanded distribution system
Dimensions: 6.4” W x .6” H x 2.5” D

Specifications

Product Name	Evolution Premium 4K HDMI® 1x4 Splitter

Brand Name	Evolution by Vanco

Mfg #	EVSP4K14

Cube	103.6 cu in

Length	6.40 in

Width	2.50 in

Height	0.60 in

UPC	741835105958

Documents

EVSP4K14-Datasheet.pdf
