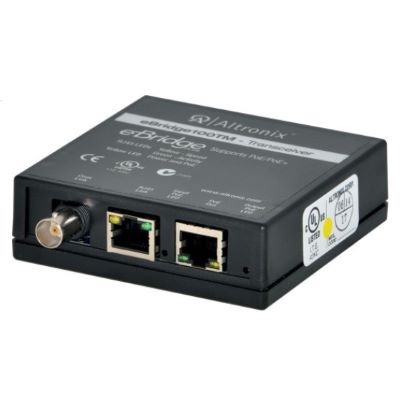

EoC or Long Range Ethernet Single Port Transceiver - 100Mbps

Altronix eBridge100TM EoC hardened transceiver transmits data at 100Mbps, Full Duplex over Coax cable to a paired eBridge receiver and provides power in a PoE/PoE+ compliant format to an enabled device/camera. The eBridge receiver is available in various options and is powered by an external midspan or endspan. The receiver passes PoE/PoE+ power over the same coax cable to the eBridge100TM transceiver, which, in turn, passes this power to an enabled IP camera/device. These plug and play units facilitate a cost-effective, simple way to replace legacy analog products with new IP devices over existing coax up to 300m. When paired with the eBridge100RM EoC Receiver, the eBridge100TM will pass 100Mbps full duplex data and PoE/PoE+ over CAT5e (or higher) up to 500m.

Features:

• IEEE 802.3af (15W) and IEEE 802.3at (30W)
• Passes 100Mbps up to 300m via Coax or 500m via CAT5e
• Eliminates the costs and labor associated with installing new network cabling
• Retrofit digital IP cameras in an analog CCTV installation
• Auto detection and protection of legacy non-PoE cameras/devices
• Works with Megapixel, HD720, HD1080 & VGA (SD) cameras
• Extends Network link distance in an industrial environment
• Upgrades deployed CCTV Coax to a digital network for Retail, Casinos, Airports, Schools, Hospitals, etc.
• UL Listed in the U.S. and Canada
• CE European Conformity
• C-Tick compliant
• Lifetime Warranty
