Name: Emergency Command Center
Brand: Fire-Lite Alarms By Honeywell
SKU: ECC-50/100
Rating: 5 (1 reviews)

Overview

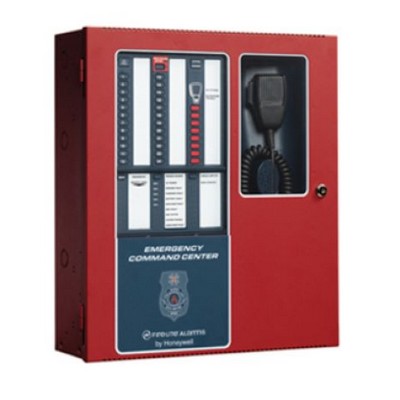

Emergency Command Center

The ECC-50/100 is a multipurpose emergency voice evacuation panel that may be used for fire applications, mass notification applications or both. May be used with any UL-listed fire alarm control panel or ECC-50/100 seamlessly integrates with fire-lite addressable panels.

Features:

UL Listed to UL2572 Communication (Control Units Mass Notification Systems)
Modular design for maximum system flexibility and easy expansion
50 watts of 25 V audio power (expandable to 100 watts) RMS
Optional amplifier can be configured as a backup in the event the primary amplifier fails
Eight Command Input Circuits to activate messages 1 to 8
Seamless integration and control when connected to select Fire-Lite panels through the ANN/ACS (EIA-485) communication bus.
Speaker circuits are expandable by up to 8 outputs (With an optional circuit expander module)
Removable terminal blocks for ease of servicing and module replacement
2 amp Notification Appliance Circuit (NAC) output, sync generator, or follower for System Sensor, Wheelock or Gentex protocols
Integral supervised microphone

Specifications

Product Name	Emergency Command Center

Brand Name	Fire-Lite Alarms By Honeywell

Mfg #	ECC-50/100

Current (A)	2

NAC's	1

Operating Voltage	120 VAC

UPC	783008112110

Zones	1
