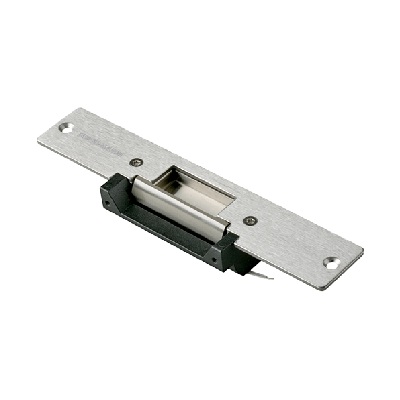

Electric Door Strikes for Wood Doors, Fail-secure or Fail-safe, 24VDC Seco-Larm SD-994C24
View Larger

Electric Door Strikes for Wood Doors, Fail-secure or Fail-safe, 24VDC

Item # SD-994C24
Manufacturer Item # SD-994C24

Log In To View
Prices		 Pixel Silver
Sold As: EA
Special Order
Pixel Trans
Pixel Trans
Seco-Larm
More Products from Seco-Larm 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Report Incorrect
Pixel Trans

Overview

Pixel Trans
Electric Door Strikes for Wood Doors, Fail-secure or Fail-safe, 24VDC
Pixel Trans
Electric Door Strike for wood-framed doors. 24VDC, Fail-safe (door unlocks when power is lost) or fail-secure (door locks when power is lost) operation. Indoor use only. ANSI-sized: 7¹⁵/₁₆"x1¼"x1⅜". UL Listed

Features:
  • UL 294 & UL 1034 Listed
  • Field-programmable in just seconds for fail-secure or fail-safe applications
  • The SECO-LARM Electric Door Strikes convert cylindrical lock sets to an electronic access controlled locking system
  • Can be used on virtually any cylindrical door locking system
  • Use of an optional digital keypad with the unit assures high security without the need for a key
  • Easily connects to SECO-LARM’s Electronic Keypads
  • Suitable for office-type applications
  • 715/16” x 17/16” x 11/4” (202x36x32 mm)
  • Symmetrical-sized. Reversible for right-hand or left-hand doors
  • Shallow design for use with most wood doors
  • Powered by a solenoid, not a buzzer coil
  • Static strength 1,000-lbs.(454kg)
  • Stainless steel lip (keeper) for strength and long life
  • Non-polarized connection. Wires can be reversed
  • Current draw 140mA@24VDC
  • Tested to 1 million cycles
  • CE approved

Specifications

Pixel Trans
  Product NameElectric Door Strikes for Wood Doors, Fail-secure or Fail-safe, 24VDC
Pixel Silver
  Brand NameSeco-Larm
Pixel Silver
  Mfg #SD-994C24
Pixel Silver
  Cube34 cu in
Pixel Silver
  Length7.45 in
Pixel Silver
  Width1.26 in
Pixel Silver
  Height1.42 in
Pixel Silver
  Lock Fail ConfigSafe / Secure
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf SD-994C24-Datasheet.pdf
