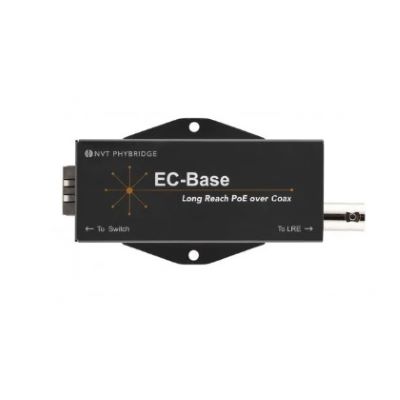

EC Base Extender - Ethernet Over Coax Adapter

The NVT Phybridge EC-Base Extender Solution is designed to supercharge the downlink ports of a standard Ethernet switch, delivering 10/100Mbps symmetrical (full duplex) and PoE over Coax infrastructure with distances up to 6,000ft (1,830m). That’s 18X the reach of standard Ethernet switches, thus removing the costs and disruptions associated with multiple IDF closet requirements.

With the EC-Base Extender Solution, IP IoT devices can be connected to the existing Coax cabling infrastructure, delivering optimal performance while saving cost, time, and environmental e-waste. Furthermore, the cost savings realized by using the EC Extender Solution can enable system designers to transfer budget and resources towards higher-quality applications and IEEE-compliant IoT devices, including IP-enabled phones, cameras, access control, speakers, and even facilities lighting.

Features:

• Base unit for 1-port long reach PoE Extender
• Negotiates with PoE switch
• When paired with EC-Link+ (50W), EC4 (30W) or EC-Link (30W) Adapters, delivers PoE over coax with up to 6,000ft (1,830m) reach
• Can be locally powered
• EN 50121-4 Standard for Railway/ Subway environments
