Home » Fire » Horns & Strobes » Horn Strobes
Pixel Trans

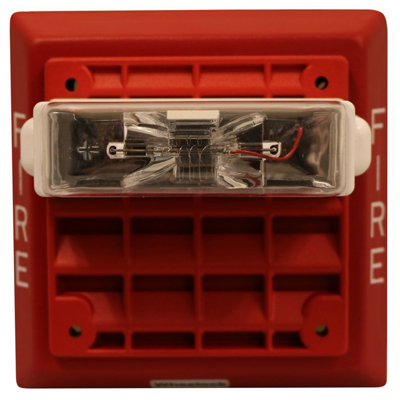

Eaton Wheelock ET80 Indoor Speaker Strobe - Red, \"FIRE\" Lettering Wheelock WHET80-24MCW-FR
View Larger

Eaton Wheelock ET80 Indoor Speaker Strobe - Red, "FIRE" Lettering

Item # WHET80-24MCW-FR
Manufacturer Item # ET80-24MCW-FR

Log In To View
Prices		 Pixel Silver
Sold As: each
Special Order
Pixel Trans
Pixel Trans
Wheelock
More Products from Wheelock 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
Eaton Wheelock ET80 Indoor Speaker Strobe - Red, "FIRE" Lettering
Pixel Trans
Eaton Wheelock ET80 speaker strobe, xenon, wall, red, FIRE, clear lens, 15/30/75/110 cd, 25/70V, indoor.

Features:
  •  Approvals Include: UL Standard 1480, UL Standard 1971, California State Fire Marshal (CSFM), New York City (MEA), Chicago (BFP), and FCC Part 15
  •  Complies with OSHA 29, Part 1910.165
  •  Designed to meet or exceed NFPA/ANSI Standards and ADA Accessibility Guidelines
  •  High efficiency speakers designed for maximum output at minimum wattage across 400 to 4000 Hz frequency range
  •  Field selectable taps for 25 or 70 VRMS operation from 1/8 watt up to 8 watts in 3 dB steps
  •  ET80 Speaker Strobe models available with Multi-candela strobes rated 15/30/75/110cd and 135/185cd or single candela strobes rated 15cd (with 75cd on axis)
  •  All strobe inputs are compatible with standard reverse polarity type supervision of circuit wiring by an alarm panel
  • Attractive package styles for flush or surface mounting to standard low cost backboxes
  •  ET-1010 models UL Listed for outdoor use with Wheelock WBB outdoor backbox
  •  Vandal resistant die cast grilles
  •  Sealed back speaker construction for extra protection and improved audibility
  •  Fast installation with IN/OUT screw terminals using #12 to #18 AWG wring
  •  Compliance with RFI limits in FCC Part 15, Class “B” for compatibility with sensitive detection and communication circuits
  •  Audio inputs include a 10 uF blocking capacitor for compatibility with DC supervision of Speaker Notification Appliance Circuits


Specifications

Pixel Trans
  Product NameEaton Wheelock ET80 Indoor Speaker Strobe - Red, "FIRE" Lettering
Pixel Silver
  Brand NameWheelock
Pixel Silver
  Mfg #ET80-24MCW-FR
Pixel Silver
  Cube137.5 cu in
Pixel Silver
  Length3.45 in
Pixel Silver
  Width5.40 in
Pixel Silver
  Height5.40 in
Pixel Silver
  Weight1.48 lbs
Pixel Silver
  Candela15 - 110
Pixel Silver
  ColorRed
Pixel Silver
  EnvironmentIndoor
Pixel Silver
  FinishMetal
Pixel Silver
  InstallationWall
Pixel Silver
  Sound Output (dB)96
Pixel Silver
  Strobe ColorClear
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf ET80-24MCW-FR-Datasheet.pdf
