Home » Power & Batteries » Power Accessories » Relay

View Larger

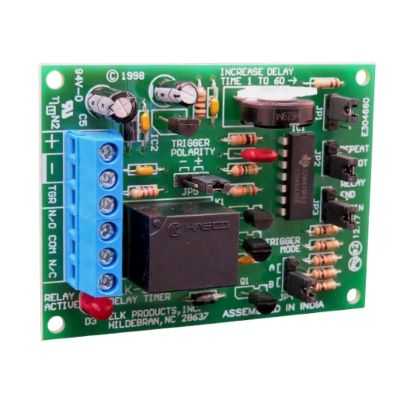

Delay Timer Relay - 12/24 VDC

Name: Delay Timer Relay - 12/24 VDC
Brand: Elk Products
SKU: ELK-960
Rating: 5 (1 reviews)

Item # ELK-960

Manufacturer Item # 960

Sold As: EA
Special Order

More Products from Elk Products

Add to Shopping List

Save For Later

Overview

Delay Timer Relay - 12/24 VDC

The ELK-960 Delay Timer is designed to be an economical and flexible solution for any general-purpose timer application. The unit can be configured for use on 12 to 24V systems, with positive or negative trigger logic. Positive triggers can be as low as 4.5V. Setup is quick and easy with thumbwheel adjustment between 1 and 60 seconds. A quick jumper setting converts the time from seconds to minutes. The Timer can be configured to activate once for each trigger, or free-run as soon as power is applied. Relay can be configured to be normally on or normally off.

Features:

12 to 24 Volt DC Operation
Adjustable Time Delay
SPDT (Form "C") Relay
Low Current Input Trigger (<1ma)
Selectable Positive or Negative trigger
Selectable Initial Relay State: ON / OFF
Operating Modes: One-Shot or Repeat
LED Indication of Relay State
Lifetime Limited Warranty

Specifications

Product Name	Delay Timer Relay - 12/24 VDC

Brand Name	Elk Products

Mfg #	960

Cube	62 cu in

Length	3.00 in

Width	2.20 in

Height	1.00 in

Operating Voltage	12 / 24 VDC

UPC	762158009600

Documents

960.pdf
