Home » Fire » Modules » Input Module

View Larger

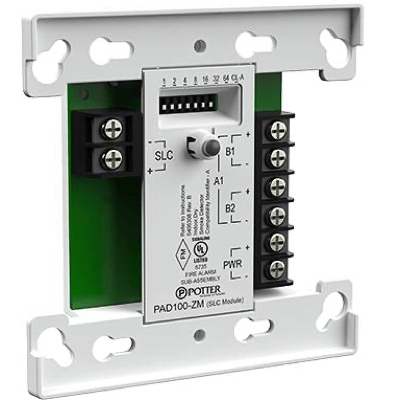

Conventional Zone Module

Name: Conventional Zone Module
Brand: Potter
SKU: PAD 100-ZM
Rating: 5 (1 reviews)

Item # PAD 100-ZM

Manufacturer Item # PAD 100-ZM

Sold As: ea
Special Order

More Products from Potter

Add to Shopping List

Save For Later

Overview

Conventional Zone Module

The PAD100-ZM is compatible with Potter’s IPA and AFC/ARC series addressable fire alarm control panels. The PAD100-ZM is used to supervise a zone of conventional 2-wire smoke detectors on an Initiating Device Circuit (IDC). The PAD100-ZM is capable of monitoring two (2) separate Class B or one (1) Class A circuits.

Features:

Compatible with conventional 2-wire smoke detectors
IDC can be wired One (1) Class A or Two (2) Class B
Monitors presence of 24VDC Aux Power
SLC Class A, Class X & Class B
Mounts in a standard 4” or double gang box
Wiring terminals accessible when mounted in box
All wiring terminals accept 22 to 12AWG
Product includes a 5 year warranty
UUKL Listed for Smoke Control

Specifications

Product Name	Conventional Zone Module

Brand Name	Potter

Mfg #	PAD 100-ZM

Cube	50 cu in

Length	4.17 in

Width	0.60 in

Height	1.14 in

Documents

PAD100-ZM.pdf
