Home » Fire » Detectors » Smoke » Conventional

View Larger

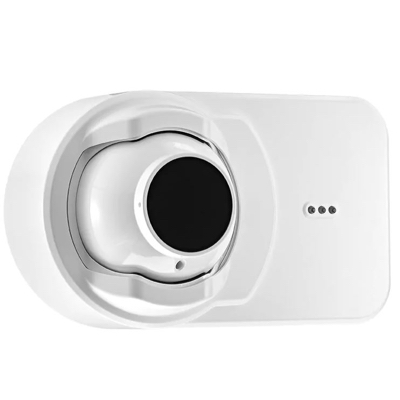

Conventional Reflective Imaging Beam Smoke Detector

Name: Conventional Reflective Imaging Beam Smoke Detector
Brand: System Sensor
SKU: OSI-R-SS
Rating: 5 (1 reviews)

Item # OSI-R-SS

Manufacturer Item # OSI-R-SS

Sold As: ea
Special Order

More Products from System Sensor

Add to Shopping List

Save For Later

Overview

Conventional Reflective Imaging Beam Smoke Detector

The OSI-R-SS is a 4-wire, single-ended, reflected type beam smoke detector that includes an 8" reflector and an integral sensitivity test.

Features:

Combined transmitter/receiver unit
Wide 12° field of view
Fast, easy, and intuitive beam alignment indicated by directional LED cross-hair arrows
Long range coverage of 5-100 m (16-328 ft) is standard; no separate long-range kit required
Highly resistant to building movement; tolerates +/- 1° movement
Resistant to strong light sources; does not alarm when saturated by sunlight
Resistant to solid object intrusion
Automatic sensitivity threshold level setting
50° horizontal and 20° vertical beam adjustment
Built-in imager heater is standard

Specifications

Product Name	Conventional Reflective Imaging Beam Smoke Detector

Brand Name	System Sensor

Mfg #	OSI-R-SS

Cube	675.61 cu in

Length	9.95 in

Width	5.90 in

Height	4.42 in

Operating Voltage	10.2 - 32 VDC

UPC	783863052828

Documents

OSI-R-SS.pdf
