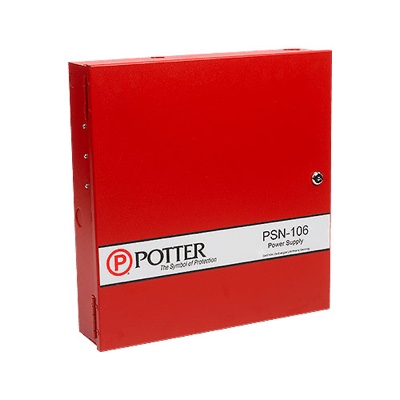

Conventional 10 Amp 24 Volt Power Supply with 6 Outputs

Name: Conventional 10 Amp 24 Volt Power Supply with 6 Outputs
Brand: Potter
SKU: PSN-106
Rating: 5 (1 reviews)

Item # PSN-106

Manufacturer Item # PSN-106

Sold As: EA

More Products from Potter

Add to Shopping List

Save For Later

Overview

Conventional 10 Amp 24 Volt Power Supply with 6 Outputs

The PSN series of notification power supplies offers reliable notification power with unprecedented versatility. The power supplies offer either 6 or 10 amps of continuous power through 4 or 6 outputs respectively. Each output is rated at 3 amps and it may be used continuously without any derating.

Features:

PSN-64 has 6 amps regulated with 4 outputs
PSN-106 has 10 amps regulated with 6 outputs
May be configured as up to three class “A” Style “Z” notification circuits
Two Trouble relays (5A at 30VDC) General System Trouble (programmable for AC delay) Low AC Trouble with optional delay settings
Diagnostic LED’s Status LED’s for Active NAC and NAC Trouble conditions.
Quadrasync feature synchronizes strobes from AMSECO, Gentex, Cooper-Wheelock and System Sensor.
Configurable output circuits (DIP switch sets options for each circuit)
Reference EOL allows 2K – 27K EOL value to be used

Specifications

Product Name	Conventional 10 Amp 24 Volt Power Supply with 6 Outputs

Brand Name	Potter

Mfg #	PSN-106

Cube	1620 cu in

Length	16.12 in

Width	16.75 in

Height	3.50 in

Documents

PSN-106.pdf
