Home » Fire » Horns & Strobes » Horn Strobes
Pixel Trans

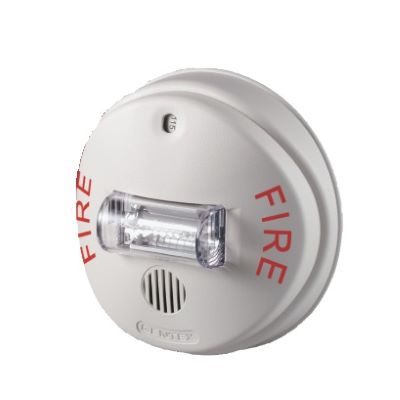

Ceiling Selectable Horn/Strobe - White Potter CHS-24W
View Larger

Ceiling Selectable Horn/Strobe - White

Item # CHS-24W
Manufacturer Item # CHS-24W

Log In To View
Prices		 Pixel Silver
Sold As: ea
Special Order
Pixel Trans
Pixel Trans
Potter
More Products from Potter 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
Ceiling Selectable Horn/Strobe - White
Pixel Trans
The Potter CHS Series is a ceiling mount strobe or horn/strobe combination that offers dependable audible and visual alarms and the lowest current consumption. The CHS offers tamperproof field selectable candela options of 15, 30, 75, 95, 115 and 150 candela.The CHS horn offers a continuous or synchable temporal three in 2400Hz and mechanical tone. All tones are easy for the professional to change in the field by using switches.

Features:
  • Nominal voltage 24 VDC
  • Tamperproof field selectable candela options 15, 30, 75, 95, 115, & 150
  • Super-Slide® Bracket - Ease of Supervision Testing
  • Checkmate® - Instant Voltage Verification
  • Synchronize strobe and/or horn with Gentex AVSM Control Module
  • Prewire entire system, install mounting bracket, then install signals
  • Documented lower installation and operating costs
  • Input Terminals 12 to 18 AWG
  • Switch Selection for High or Low dBA
  • Switch Selection for 2400Hz or mechanical Tone
  • Switch Selection for Continuous or Temporal 3
  • Tamperproof re-entrant grill
  • Surface mount with the CLNGBB (Ceiling Surface Mount Back Box)
  • Silence audible while visual appliance will remain flashing (for use in accepted jurisdictions)

Specifications

Pixel Trans
  Product NameCeiling Selectable Horn/Strobe - White
Pixel Silver
  Brand NamePotter
Pixel Silver
  Mfg #CHS-24W
Pixel Silver
  Cube126.75 cu in
Pixel Silver
  Height2.60 in
Pixel Silver
  Candela15 - 150
Pixel Silver
  ColorWhite
Pixel Silver
  Diameter (In)6
Pixel Silver
  Operating Voltage24 VDC
Pixel Silver
  Sound Output (dB)81 - 86 dBA
Pixel Silver
  Strobe ColorClear
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf CHS-24W.pdf
