Home » CCTV » IP Cameras

View Larger

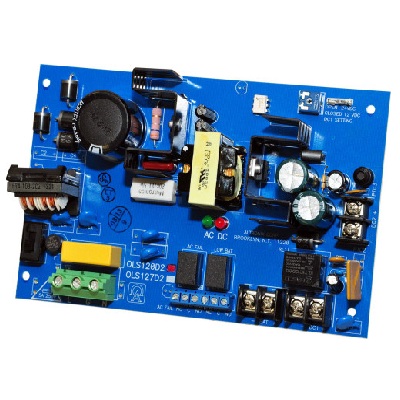

Power Supply Charger, Dual Output, 12/24VDC @ 4A, 115/220VAC, Board

Name: Power Supply Charger, Dual Output, 12/24VDC @ 4A, 115/220VAC, Board
Brand: Altronix
SKU: OLS120D2
Rating: 5 (1 reviews)

Item # OLS120D2

Manufacturer Item # OLS120D2

Sold As: ea
Special Order

More Products from Altronix

Add to Shopping List

Save For Later

Overview

Power Supply Charger, Dual Output, 12/24VDC @ 4A, 115/220VAC, Board

Altronix OLS120D2 power supply/charger converts a 115VAC, 50/60Hz or 230VAC, 50/60Hz input to a 12VDC/24VDC output and a 12VDC fixed output (see specifications).This unit has a wide range of applications for access control and security system accessories that require additional power.

Features:

Input Universal input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.6A.
Output DC1 - 12 or 24VDC @ 3A and DC2 - 12VDC @ 1A. Note: If DC2 is not used, DC1 rating is 12VDC or 24VDC rated @ 4A max. Filtered and electronically regulated output. Short circuit and thermal overload protection.
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current 0.7A.
Automatic switch over to stand-by battery when AC fails.
Battery leads included. (Batteries are sold separately).
AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).
AC input and DC output LED indicators.
Power ON/OFF switch (interrupts mains).

Specifications

Product Name	Power Supply Charger, Dual Output, 12/24VDC @ 4A, 115/220VAC, Board

Brand Name	Altronix

Mfg #	OLS120D2

Cube	80 cu in

Length	7.25 in

Width	4.50 in

Height	1.75 in

Weight	0.7 lbs

Operating Voltage	115 - 240 VAC

Output Voltage	12 / 24 VDC

Outputs	2

Documents

	OLS120D2-Datasheet.pdf
	OLS120D2-Manual.pdf
