4K HDMI 1x4 Splitter/Extender over Cat6 Seco-Larm MVE-AH1E4-42NQ
View Larger

4K HDMI 1x4 Splitter/Extender over Cat6

Item # MVE-AH1E4-42NQ
Manufacturer Item # MVE-AH1E4-42NQ

Log In To View
Prices

Sold As: ea
Special Order
Seco-Larm
More Products from Seco-Larm
  Add to Shopping List
  Save For Later
  Share

Overview

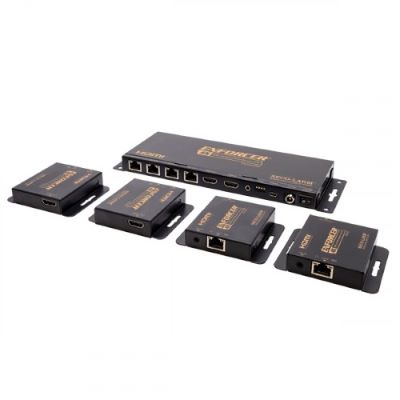

4K HDMI 1x4 Splitter/Extender over Cat6
The ENFORCER 4K HDMI 1x4 Splitter/Extender over Cat6 extends the range of traditional HDMI cabling methods by using an active transmitter and 4 receivers to send video and audio over Cat6. HDMI formats as large as 4K can be transmitted up to 230ft (70m) between the units with zero signal loss by using integrated circuits in the receivers and transmitter. Includes one 12VDC power supply , four IR receiver, and one IR transmitter.

Features:
  • Signal Strength – Active operation ensures signal strength remains strong over the entire cable length.
  • Distance – The 4K HDMI 1x4 Splitter/Extender over Cat6 is capable of providing a clear HDMI signal up to 131ft (40m) at 4K resolution or 230ft (70m) at 1080p resolution.
  • Formats Supported – The 4K HDMI 1x4 Splitter/Extender over Cat6 supports both progressive and interlaced formats: 4K@30Hz/1080p/1080i/720p/576p/480p/480i.
  • Plug and Play – The 4K HDMI 1x4 Splitter/Extender over Cat6 comes as a complete set consisting of a transmitter and 4 receivers, power supply, and IR dongles.
  • Zero Signal Loss – Integrated circuits in the transmitter and receivers clean, buffer, and amplify the HDMI signal to prevent signal loss and ensure a clear signal regardless of the length of the cable.
  • IR – Send IR signals from the monitors to the source for discrete operation of devices.
  • Loop out – Supports a local monitor.
  • Power – One (1) 12VDC power supply included – set powered at transmitter end

Specifications

  Product Name4K HDMI 1x4 Splitter/Extender over Cat6
  Brand NameSeco-Larm
  Mfg #MVE-AH1E4-42NQ
  Cube68 cu in
  ColorBlack
  Operating Voltage12 VDC
  Outputs4
  Resolution4K

Documents

MVE-AH1E4-42NQ.pdf
