Name: Atrium Access Control 2-Door and K1 Reader Kit, No Box
Brand: CDVI
SKU: CDVI-A22K1NB
Rating: 5 (1 reviews)

Overview

Atrium Access Control 2-Door and K1 Reader Kit, No Box

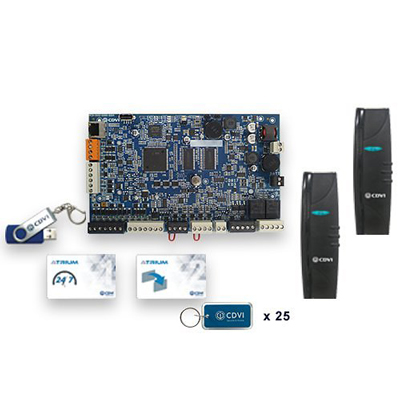

The A22K is ATRIUM’s encrypted web-based (HTTPS) door controller. Use your smartphone, tablet, or any web-enabled device to easily manage the system over a secure connection in the office, at home, or on the road! This kit includes the A22k Controller, K1 security readers, 1 pack of 25 TAG-EV2, Atrium Software, and master & programming cards.

Features:

Controls 2 doors and 4 readers (Entry/Exit per reader port)
Pre-assembled universal plug-in power supply (120V/240V) included
Convert any A22K door controller to an A22KEC elevator controller by simply updating the firmware for free (up to 256 floors).
On-board Ethernet Port with AES 256-bit encryption
On-board RS485 communication bus, 1220 m (4000 feet)
Embedded secure HTTPS web server
Auto-detect hardware modules
Quick and easy card enrollment procedure
Lock outputs: 2 (750 mA @ 12 VDC/each)
Relay Outputs: 2 Form C relays (Dry Contact) 5 A @ 250 VAC, 7 A @ 125 VAC, 7 A @ 30 VDC
6 multi-purpose inputs (12 using zone doubling)
IPV6 ready
Entirely fuseless system
Up to 10,000 users
Up to 10,000 cards
Up to 25,000 Event Buffer
Ultra-fast firmware updating
FREE Atrium Software
Maintenance-friendly snap-on terminal connectors
Comprehensive LED status indicators

Specifications

Product Name	Atrium Access Control 2-Door and K1 Reader Kit, No Box

Brand Name	CDVI

Mfg #	A22K1NB

Cube	720 cu in

Connectivity	Ethernet

Doors	2

Family	A22K

Operating Voltage	24 VDC
