Home » Access & Intercom » Door Controllers & Software » Panels

View Larger

Atrium 2 Door Controller

Name: Atrium 2 Door Controller
Brand: CDVI
SKU: CDVI-A22
Rating: 5 (1 reviews)

Item # CDVI-A22

Manufacturer Item # A22

Sold As: EA
Special Order

More Products from CDVI

Add to Shopping List

Save For Later

Overview

Atrium 2 Door Controller

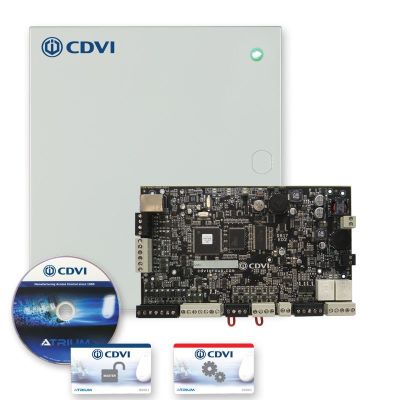

ATRIUM 2-Door Controller comes with metal box, power supply, software , APCARD and AMCARD.

Features:

Controls 2 doors and 2 readers
Pre-assembled universal plug-in power supply (120V/240V) included
Convert any A22 door controller to an A22EC elevator controller by simply updating the firmware for free (up to 256 floors).
On-board Ethernet Port with AES 256-bit encryption
On-board RS485 communication bus, 1220 m (4000 feet)
On-board embedded web server
Auto-detect hardware modules
Quick and easy card enrollment procedure
Lock outputs: 2 (750mA @ 12VDC/each)
Relay Outputs: 2 Form C relays (Dry Contact) 5A @ 250VAC, 7A @ 125VAC, 7A @ 30VDC
6 multi-purpose inputs (12 using zone doubling)
Completely fuseless system
Up to 10,000 users
Up to 10,000 cards
Up to 25,000 event buffer

Specifications

Product Name	Atrium 2 Door Controller

Brand Name	CDVI

Mfg #	A22

Cube	519.11 cu in

Doors	2

Family	Atrium

Operating Voltage	120 VAC

Ports	2

Companions

	Blue Key Ring Badge Sold As EA Item # CDVI-BTAG	Log In To View Prices
	Standard Clamshell Card Sold As EA Item # CDVI-CS	Log In To View Prices
	Black Key Ring Proximity Key Fob Sold As EA Item # CDVI-KTAG25	Log In To View Prices
	Mini Proximity Card Reader Sold As EA Item # CDVI-NANOPB	Log In To View Prices
	Two Door Nano Kit Sold As EA Item # CDVI-A22KITB	Log In To View Prices
	T-Rex Exit Detector Sold As EA Item # T.REX-LT-NL	Log In To View Prices

Documents

A22.pdf
