Home » Infrastructure » Fiber Optic » Fiber Tools

View Larger

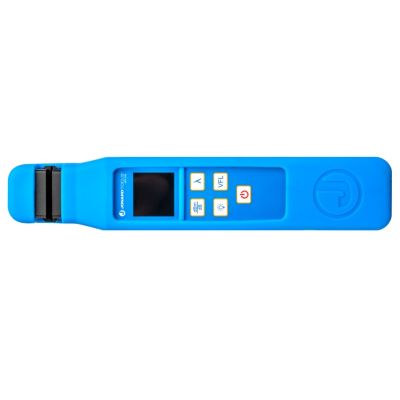

Advanced Optical Fiber Identifier with Power Meter & VFL

Name: Advanced Optical Fiber Identifier with Power Meter & VFL
Brand: Jonard Tools
SKU: OFI-100
Rating: 5 (1 reviews)

Item # OFI-100

Manufacturer Item # OFI-100

Sold As: ea
Special Order

More Products from Jonard Tools

Add to Shopping List

Save For Later

Overview

Advanced Optical Fiber Identifier with Power Meter & VFL

Designed to quickly identify the direction of light being transmitted in the fiber and display the relative core power without damaging the fiber. This fiber identifier is the perfect tool for identifying fiber in network systems without disrupting the network and includes a built-in VFL and Power Meter for convenience. This fiber identifier also features the following:

Features:

Efficiently identifies the traffic direction and frequency (270Hz, 1KHz, 2KHz) with an audible warning
LCD clearly displays the relative core power, signal direction, and battery life
Reversible adapter has one side for 2 mm and 3 mm fiber optic cables, and the opposite side is used for 250 µm and 900µm fiber
Built-in VFL allows you to find faults in fiber cables quickly and easily
Built-in Power Meter can be used to measure power using 850, 1300, 1310, 1490, 1550, and 1625 nm wavelengths

Specifications

Product Name	Advanced Optical Fiber Identifier with Power Meter & VFL

Brand Name	Jonard Tools

Mfg #	OFI-100

Cube	32.6 cu in

Length	9.00 in

Width	1.73 in

Height	2.10 in

Weight	0.59 lbs

UPC	810053351529

Documents

OFI-100.pdf
