Home » Fire » Detectors » Bases » Addressable

$Addressable Sounder Base 6\" Silent Knight By Honeywell SKSD505-6SB$

View Larger

Addressable Sounder Base 6"

Name: Addressable Sounder Base 6
Brand: Silent Knight By Honeywell
SKU: SKSD505-6SB
Rating: 5 (1 reviews)

Item # SKSD505-6SB

Manufacturer Item # SD505-6SB

Sold As: EA

More Products from Silent Knight By Honeywell

Add to Shopping List

Save For Later

Overview

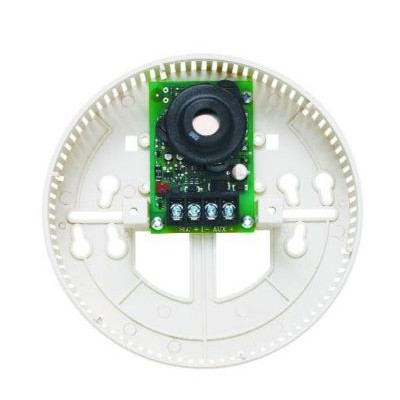

Addressable Sounder Base 6"

The SD505-6SB is a 6" sounder base provides an audible output for the connected detector that is activated. SD505-6SB can be programmed for single or multi-station sounding. The Base adds an audible output function to the IntelliKnight SD505-APS, SD505-AIS, or SD505-AHS addressable detectors. Ideal for use in hotels, apartments and dormitories where in room sounders are required.

Features:

Adds an audible output function to an addressable detector
Support for Class A (Style 6 or Style 7) and Class B (Style 4) wiring
Attaches underneath 6" detector base SD505-6AB for quick installation
UL Listed (meets or exceeds UL 217 and UL 464 requirements for evacuation signal sound level of 85 dB at 10 ft.)
Uses the 12 pre-programmed output cadences, (including ANSI-3.41), or the 4 programmable outputs of the IntelliKnight FACP.
Adds audible output functions without using another SLC address

Specifications

Product Name	Addressable Sounder Base 6"

Brand Name	Silent Knight By Honeywell

Mfg #	SD505-6SB

Cube	147 cu in

Length	6.00 in

Width	6.00 in

Height	2.00 in

Weight	0.45 lbs

Technology	Sd Hochiki

UPC	783196008929

Documents

SD505-6SB.pdf

In This Category

24 VDC Addressable Relay Base

PAD 100-RB

View

24 VDC Addressable Sounder Base

PAD300-SB

View

4" Addressable Detector Base

PAD 100-4DB

View

4" Plug-in Detector Base - White

B501-WHITE

View

6" Addressable Detector Base

PAD 100-6DB

View

Array ( [qbi_imported] => 0 [vendors_product_price] => 0.0000 [products_reviews] => 0 [products_rating] => 0.00 [products_source] => 0 [products_delivery_time] => [products_free_shipping] => 1 [products_sold_as] => EA [products_pieces] => 1 [products_shipping_terms] => [international_items] => [products_ship_from] => [products_per_pallet] => 0 [products_per_halftruck] => 0 [products_per_truck] => 0 [products_per_pallet_id] => 0 [products_per_halftruck_id] => 0 [products_per_truck_id] => 0 [products_cube] => 147.00 [products_pdf] => [products_width] => 7.00 [products_height] => 3.00 [products_depth] => 7.00 [products_width_built] => 6.00 [products_height_built] => 2.00 [products_depth_built] => 6.00 [products_weight_built] => 0.45 [products_warranty] => [products_suggested_price] => 0.0000 [products_price_vary] => 0 [products_weight] => 0.65 [products_id] => 11553 [products_name] => Addressable Sounder Base 6" [products_description] => The SD505-6SB is a 6" sounder base provides an audible output for the connected detector that is activated. SD505-6SB can be programmed for single or multi-station sounding. The Base adds an audible output function to the IntelliKnight SD505-APS, SD505-AIS, or SD505-AHS addressable detectors. Ideal for use in hotels, apartments and dormitories where in room sounders are required.

Features:

Adds an audible output function to an addressable detector
Support for Class A (Style 6 or Style 7) and Class B (Style 4) wiring
Attaches underneath 6" detector base SD505-6AB for quick installation
UL Listed (meets or exceeds UL 217 and UL 464 requirements for evacuation signal sound level of 85 dB at 10 ft.)
Uses the 12 pre-programmed output cadences, (including ANSI-3.41), or the 4 programmable outputs of the IntelliKnight FACP.
Adds audible output functions without using another SLC address
