Home » Fire » Modules » ANM

View Larger

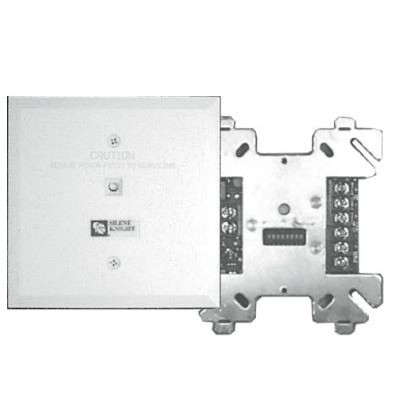

Addressable Notification Module

Name: Addressable Notification Module
Brand: Silent Knight By Honeywell
SKU: SKSD500-ANM
Rating: 5 (1 reviews)

Item # SKSD500-ANM

Manufacturer Item # SD500-ANM

Sold As: EA

More Products from Silent Knight By Honeywell

Add to Shopping List

Save For Later

Overview

Addressable Notification Module

The SD500-ANM is an addressable notification module and provides supervised monitoring of wiring to the load devices that require an external power supply to operate such as bells, horns, and strobes. The SD500-ANM provides a single class A or B circuit that is controlled by the IntelliKnight's Signaling Line Circuit. Power for the circuit is provided to the SD500-ANM module from a separate power supply, making it easy to power remote devices. The notification circuit, remote power and communication to the SD500-ANM are supervised by the FACP.

Features:

Class A (Style Z) or Class B (Style Y) otification Circuit
Flexible programming, choose the cadence pattern (twelve standard & four user-defined)
Polling LED visible through cover plate
UL listed, complies with NFPA 72, CFSM approved, MEA approved
Adds up to 127 independent output circuits on each SLC loop
Supervised auxiliary power input
Completely supervised Uses the RS-485 SBUS to interface with the panel

Specifications

Product Name	Addressable Notification Module

Brand Name	Silent Knight By Honeywell

Mfg #	SD500-ANM

Length	4.88 in

Width	1.00 in

Height	4.88 in

Weight	0.25 lbs

Operating Voltage	24 VDC

UPC	783196008349

Documents

SD500-ANM.pdf

Array ( [qbi_imported] => 0 [vendors_product_price] => 0.0000 [products_reviews] => 0 [products_rating] => 0.00 [products_source] => 0 [products_delivery_time] => [products_free_shipping] => 1 [products_sold_as] => EA [products_pieces] => 1 [products_shipping_terms] => [international_items] => [products_ship_from] => [products_per_pallet] => 0 [products_per_halftruck] => 0 [products_per_truck] => 0 [products_per_pallet_id] => 0 [products_per_halftruck_id] => 0 [products_per_truck_id] => 0 [products_cube] => 0.00 [products_pdf] => [products_width] => 5.20 [products_height] => 1.50 [products_depth] => 7.90 [products_width_built] => 1.00 [products_height_built] => 4.88 [products_depth_built] => 4.88 [products_weight_built] => 0.25 [products_warranty] => [products_suggested_price] => 0.0000 [products_price_vary] => 0 [products_weight] => 0.35 [products_id] => 11550 [products_name] => Addressable Notification Module [products_description] => The SD500-ANM is an addressable notification module and provides supervised monitoring of wiring to the load devices that require an external power supply to operate such as bells, horns, and strobes. The SD500-ANM provides a single class A or B circuit that is controlled by the IntelliKnight's Signaling Line Circuit. Power for the circuit is provided to the SD500-ANM module from a separate power supply, making it easy to power remote devices. The notification circuit, remote power and communication to the SD500-ANM are supervised by the FACP.

Features:

Class A (Style Z) or Class B (Style Y) otification Circuit
Flexible programming, choose the cadence pattern (twelve standard & four user-defined)
Polling LED visible through cover plate
UL listed, complies with NFPA 72, CFSM approved, MEA approved
Adds up to 127 independent output circuits on each SLC loop
Supervised auxiliary power input
Completely supervised Uses the RS-485 SBUS to interface with the panel
