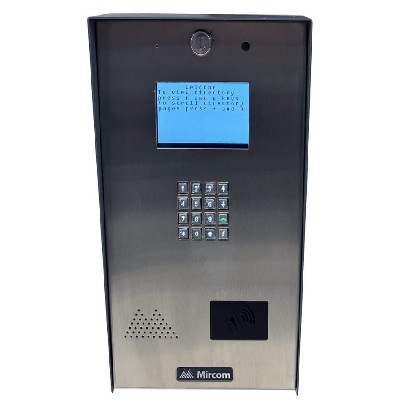

Mircom’s TX3 Reinforced Voice Entry Systems are designed to provide visitor access control to doorways, overhead doors, or barrier gates for up to 2000 occupants.
Versatile mounting includes a Reinforced Universal surface outdoor enclosure and a Reinforced Continental flush interior enclosure. These units come with a microphone, tamper-resistant speaker, provision for a built-in postal lock, and color camera. The Reinforced Universal Series has a built-in rain hood with optional mounting adaptors for semi-flush or gooseneck mount applications.
The panels are constructed from heavy stainless steel to withstand years of environmental abuse and provide years of trouble-free performance.
The panel has an 8-line back-lit electronic LCD display, which can be programmed in the field. It can be switched to a 6-line display for larger fonts. A scrolling greeting for visitors along with occupants’ names and dial codes. In addition, a 16-digit backlit telephone-style keypad is integrated into the enclosure with dedicated operational buttons for Page Up, Page Down, Call, and Information.
The systems are easily programmable via a built-in keypad or computer equipped with the TX3 configuration software. For remote programming, the system is configured using the TX3 software and the TX3 Modem Module or the TX3 TCP/IP module.
Features:
- TCP/IP capability for remote programming by adding a TX3-IP module
- Stainless steel front panel for enhanced durability.
- Reinforced Universal Series enclosure is equipped with a built-in rain hood
- Large scrolling 8 or 6 line backlit display provide large fonts for easy readability
- Extensive User Capacity; Supports up to 2000 names
- Backlit 16 digit keypad with dedicated operational buttons for Page Up, Page Down, Call and Info
- Provision for postal lock or card reader (TX3-P300-HA card reader sold separately)
- Provision to add optional TX3-WIEGAND-OUT module to integrate any Wiegand compatible 3rd party access control system with
Mircom’s TX3 Voice Entry systems
- Field-Configurable Multilingual Display and Voice Greeting (English, French-Canadian, and Spanish) for user instructions.
- Concierge/Security Desk/Guard Phone capability
- Supports both AutoDialer (ADC) and NSL (No phone bill)
- Ability to network panels together (peer-to-peer)
- Hands free, full duplex communication
- Flexible one to four digit resident codes
- Dials up to 18 digit telephone numbers
- System can be configured locally using the keypad or a computer with the TX3 configuration software
- Remote programming with the TX3 configuration software requires a computer equipped with a modem and a TX3-MDM modem module installed in the lobby unit or using TX3-IP module to connect using TCP/IP
- Upload/download configuration files without system downtime
- Record 5000 events in the event log
- Elevator restriction capability
- Industry Canada and F.C.C. approved
