Home » Power & Batteries » Power Supplies » Wall

View Larger

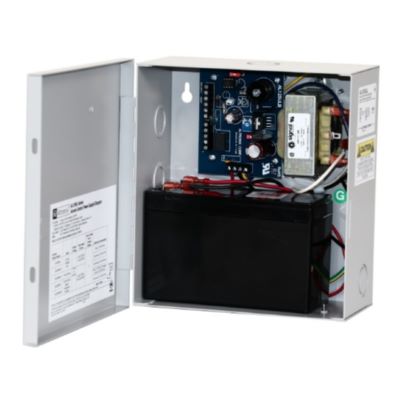

Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1A - BC100 Enclosure

Name: Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1A - BC100 Enclosure
Brand: Altronix
SKU: AL125UL
Rating: 5 (1 reviews)

Item # AL125UL

Manufacturer Item # AL125UL

Sold As: EA

More Products from Altronix

Add to Shopping List

Save For Later

Overview

Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1A - BC100 Enclosure

Altronix AL125UL Series power-limited Power Supply/Chargers convert 115VAC 50/60Hz input into two individually PTC protected 12VDC or 24VDC outputs (see specifications). They are intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels.

Features:

Two (2) 12VDC or 24VDC Class 2 Rated Power-Limited Outputs
Built-in charger for sealed lead acid or gel type batteries
Instantaneous transfer to stand-by batteries
Short circuit and overload protection
AC input and unit status indicator on the front panel
Normally Open [NO] trigger input
Supervised Fire Alarm Disconnect (Latching with reset or Non-Latching)
UL Listed in the U.S. and Canada
NFPA and MEA Approved

Specifications

Product Name	Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1A - BC100 Enclosure

Brand Name	Altronix

Mfg #	AL125UL

Cube	405 cu in

Length	7.50 in

Width	3.50 in

Height	8.50 in

Weight	5.1 lbs

Current (A)	1A

Output Voltage	12 - 24 VDC

Documents

AL125UL.pdf
