Home » Fire » Control Panels » Conventional Fire Panel

View Larger

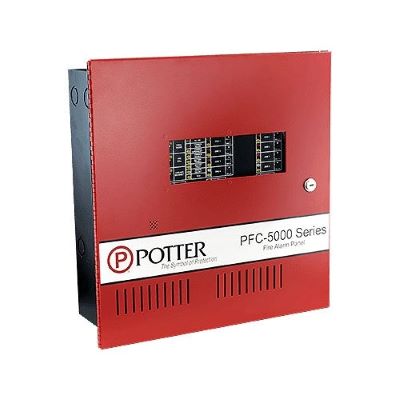

8 Zone Conventional Fire Alarm Control Panel

Name: 8 Zone Conventional Fire Alarm Control Panel
Brand: Potter
SKU: PFC-5008D
Rating: 5 (1 reviews)

Item # PFC-5008D

Manufacturer Item # PFC-5008D

Sold As: ea
Special Order

More Products from Potter

Add to Shopping List

Save For Later

Overview

8 Zone Conventional Fire Alarm Control Panel

8 Zone FACP with DACT red cabinet.

Features:

8 Class B (Style B) 4 Class A (Style D) Initiating Circuits 4 Class A (Style D) circuits.
Predefined Initiating Circuits can be configured as Waterflow or Latching/Non- Latching Supervisory
Selectable Alarm Verification on Initiating Circuits
Zone Disconnect Switches
5 Amp Power Supply
4 Class A/B (Style Z/Y) Indicating Circuits (1.7 Amps max. per circuit.)
Audibles may be configured as Steady, Temporal Code, California Code, or March Time
Auto Signal Silence
Auxiliary relay contacts for Common Alarm, Common Trouble, and Common Supervisory.
Built-in RS-485 Interface for RA8F Multiplexed Remote Annunciators (Up to 3 Annunciators)
Built-in Walk Test operation
Output for 4-wire resettable regulated smoke power.
Easy configuration via DIP switches

Specifications

Product Name	8 Zone Conventional Fire Alarm Control Panel

Brand Name	Potter

Mfg #	PFC-5008D

Cube	1078.8 cu in

Length	5.00 in

Width	14.50 in

Height	14.88 in

Color	Red

Operating Voltage	120 / 240 VAC

UPC	785192012115

Zones	8

Documents

PFC-5008D.pdf
