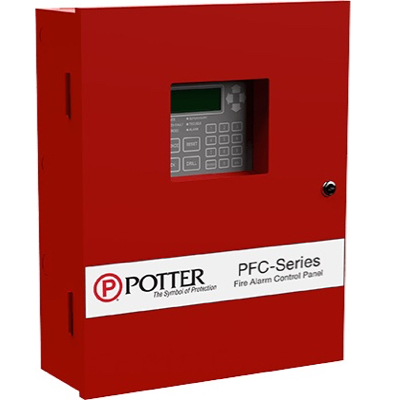

6 Zone Conventional Fire Control Panel Potter PFC-6006-R
View Larger

6 Zone Conventional Fire Control Panel

Item # PFC-6006-R
Manufacturer Item # PFC-6006-R

Log In To View
Prices		 Pixel Silver
Sold As: EA
Special Order
Pixel Trans
Pixel Trans
Potter
More Products from Potter 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
6 Zone Conventional Fire Control Panel
Pixel Trans
The PFC-6006 is a listed small conventional fire system ideally suited to monitor a small fire system such as a fire sprinkler system. The first input is selectable as a Class A or Class B water flow input and the other five zones are selectable from a menu of options including two-wire smoke detection.

Features:
  • 6 Programmable Initiating Device Circuits
  • Class A or Class B Waterflow Initiating Circuit
  • 2 Wire Smoke Detector Compatibility
  • 1.0 Amp Power Supply
  • 1 Notification Circuit rated at 0.5 Amps Regulated
  • Strobe Synchronization for Potter/AMSECO, Gentex, System Sensor and Cooper/Wheelock
  • 0.5 Amp Auxiliary Power, Programmable as Constant or Resettable
  • 2 x 16 LCD display with system LEDs for clear system status
  • Keypad for system features
  • P-Link for Remote Annunciator Connections
  • Capacity to charge and house 18AH batteries
  • Onboard Dual Line Digital Alarm Communicator
  • Built-in Ethernet Connection with listed IP Communicator
  • Ability to E-mail system status, reports and system configuration
  • Service Reminder E-mails

Specifications

Pixel Trans
  Product Name6 Zone Conventional Fire Control Panel
Pixel Silver
  Brand NamePotter
Pixel Silver
  Mfg #PFC-6006-R
Pixel Silver
  Cube1377.5 cu in
Pixel Silver
  Length18.50 in
Pixel Silver
  Width14.25 in
Pixel Silver
  Height4.75 in
Pixel Silver
  ColorRed
Pixel Silver
  InstallationWall
Pixel Silver
  NAC's1
Pixel Silver
  Operating Voltage120 VAC
Pixel Silver
  Zones6
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf PFC-6006-R.pdf
