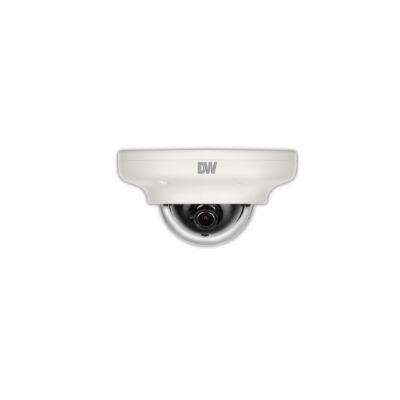

5MP Vandal Dome Camera with 2.8mm Fixed Lens Digital Watchdog DWC-V7553W
View Larger

5MP Vandal Dome Camera with 2.8mm Fixed Lens

Item # DWC-V7553W
Manufacturer Item # DWC-V7553W

Log In To View
Prices		 Pixel Silver
Sold As: ea
Special Order
Pixel Trans
Pixel Trans
Digital Watchdog
More Products from Digital Watchdog 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
5MP Vandal Dome Camera with 2.8mm Fixed Lens
Pixel Trans
Featuring Star-Light Plus™ color in near-total darkness, 5MP Universal HD over Coax® cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI. The ultra low-profile weather resistant vandal dome cameras are IP67-rated and can be controlled via the same coax cable using UTC. All DW® Universal HD over Coax® cameras are engineered to work with our VMAX® A1 Plus™ DVRs using your existing coax infrastructure.

Features:
  • Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI
  • Star-Light™ color in near-total darkness technology
  • 1/2.8" image sensor
  • 5MP at 20fps, 4MP at real-time 30fps
  • 2.8mm fixed lens
  • True wide dynamic range (WDR)
  • OSD control via coaxial (UTC)
  • Ultra low-profile vandal dome housing
  • Smart DNR™ 3D digital noise reduction
  • De-Fog™ extreme weather image compensation
  • Easy icon driven OSD menu with built-in joystick
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • UL listed
  • NDAA compliant
  • IP67 dust-tight and waterproof to 3 feet
  • IK 10-rated impact-resistant
  • 5 year warranty

Specifications

Pixel Trans
  Product Name5MP Vandal Dome Camera with 2.8mm Fixed Lens
Pixel Silver
  Brand NameDigital Watchdog
Pixel Silver
  Mfg #DWC-V7553W
Pixel Silver
  Cube23.42 cu in
Pixel Silver
  Length4.10 in
Pixel Silver
  Width2.39 in
Pixel Silver
  Height2.39 in
Pixel Silver
  Weight0.88 lbs
Pixel Silver
  EnvironmentOutdoor
Pixel Silver
  Lens Size (mm)2.8
Pixel Silver
  Lens TypeFixed
Pixel Silver
  Operating Voltage12 VDC
Pixel Silver
  RatingIP67
Pixel Silver
  Resolution5 MP
Pixel Silver
  VandalIK10
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf DWC-V7553W.pdf
