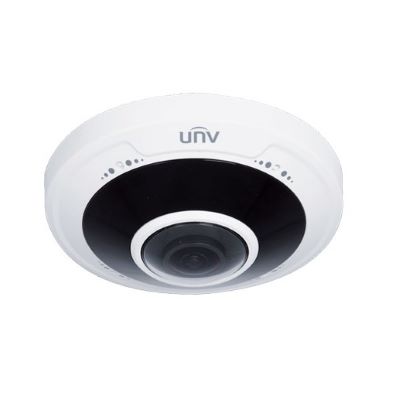

5MP Ultra 265 Network Fisheye Camera 2.8 mm Uniview IPC815SB-ADF14K-I0
View Larger

5MP Ultra 265 Network Fisheye Camera 2.8 mm

Item # IPC815SB-ADF14K-I0
Manufacturer Item # IPC815SB-ADF14K-I0

Log In To View
Prices
Pixel Silver
Sold As: ea
Special Order
Pixel Trans
Pixel Trans
Uniview
More Products from Uniview
Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
5MP Ultra 265 Network Fisheye Camera 2.8 mm
Pixel Trans
The IPC815SB-ADF14K-I0 camera from Uniview is a 5 MP outdoor turret camera, focal length of 1.4 mm, FOV: 360°, min. illumination of 0.01 ƒ/2.0 (color) AGC on, 0 Lux with IR, IR distance of 33 feet (10 m), 12 VDC , 120 dB WDR, IP66 rated, IK10 vandal resistant.

Features:
  • High quality image with 5MP, 1/2.8"CMOS sensor
  • 5MP (2592*1944):@ 30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • 120dB true WDR technology enables clear image in strong light scene
  • Built-in 2 Mic, Supports the detection of sounds over longer distances
  • Alarm:1 in/1 out, Audio: 1 in/1 out
  • Smart IR, up to 10m (33ft) IR distance
  • Supports 256 G Micro SD card
  • IK10 vandal resistant
  • IP66 protection
  • Support PoE power supply

Specifications

Pixel Trans
  Product Name5MP Ultra 265 Network Fisheye Camera 2.8 mm
Pixel Silver
  Brand NameUniview
Pixel Silver
  Mfg #IPC815SB-ADF14K-I0
Pixel Silver
  Cube108 cu in
Pixel Silver
  Height1.70 in
Pixel Silver
  Weight0.79 lbs
Pixel Silver
  Audio2-Way
Pixel Silver
  ColorWhite
Pixel Silver
  CompressionUltra H.265 / H.265 / H.264 / MJPEG
Pixel Silver
  ConnectivityEthernet
Pixel Silver
  Diameter (In)4.9
Pixel Silver
  EnvironmentOutdoor
Pixel Silver
  IR (Ft)33
Pixel Silver
  IR (M)10
Pixel Silver
  Lens Size (mm)1.4
Pixel Silver
  Lens TypeFixed
Pixel Silver
  Operating Voltage12 VDC / POE
Pixel Silver
  Power Consumption (W)8.5
Pixel Silver
  RatingIP66
Pixel Silver
  Resolution5 MP
Pixel Silver
  VandalIK10
Pixel Silver
  Video TechnologyIP
Pixel Silver
  WDR (Db)120
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf IPC815SB-ADF14K-I0.pdf
