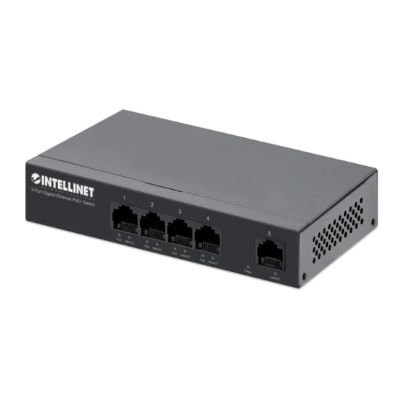

5-Port Gigabit Ethernet PoE+ Switch Intellinet 561792
View Larger

5-Port Gigabit Ethernet PoE+ Switch

Item # 561792
Manufacturer Item # 561792

Log In To View
Prices		 Pixel Silver
Sold As: ea
Pixel Trans
Pixel Trans
Intellinet
More Products from Intellinet 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
5-Port Gigabit Ethernet PoE+ Switch
Pixel Trans
The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports, four of which are high-power PoE+ PSE ports. This switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds up to 1000 Mbps.

Features:
  • Provides up to four PoE network devices with power and data
  • PoE power budget of 40 watts
  • 10 Gbps switch fabric / switching capacity
  • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
  • Compatible with IEEE 802.3at/af-compliant powered devices (PD) such as network cameras, wireless access points, VoIP phones and more
  • Power output up to 30 watts per port
  • Short-circuit, overload and high-voltage protection
  • Saves time and money by delivering data and power via existing network cables
  • Auto-sensing PoE awareness to ensure that power is only sent to IEEE 802.3at/af-compliant devices; non-PoE devices only receive data
  • Supports 2k MAC address entries with Auto-Learning and Auto-Aging
  • Supports jumbo frames up to 9 kBytes
  • Buffer memory of 125 kBytes
  • ESD protection up to 8 kV (air) and 6 kV (contact)
  • Mounting holes for wall mounting
  • Store and forward switching architecture
  • Supports IEEE 802.3x flow control on full duplex and backpressure on half duplex
  • Fanless design ideal for silent operation
  • Fully NDAA-compliant
  • Three-year warranty

Specifications

Pixel Trans
  Product Name5-Port Gigabit Ethernet PoE+ Switch
Pixel Silver
  Brand NameIntellinet
Pixel Silver
  Mfg #561792
Pixel Silver
  Cube48 cu in
Pixel Silver
  Length6.00 in
Pixel Silver
  Width4.00 in
Pixel Silver
  Height2.00 in
Pixel Silver
  Weight3 lbs
Pixel Silver
  ClassIEEE 802.3at/af
Pixel Silver
  Maximum Power Per Port (W)30
Pixel Silver
  PoE Budget (W)40
Pixel Silver
  PoE Ports5
Pixel Silver
  Ports5
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf 561792.pdf
