4K 30Hz UHD HDBaseT™ Extender Set WyreStorm EX-70-G2
View Larger

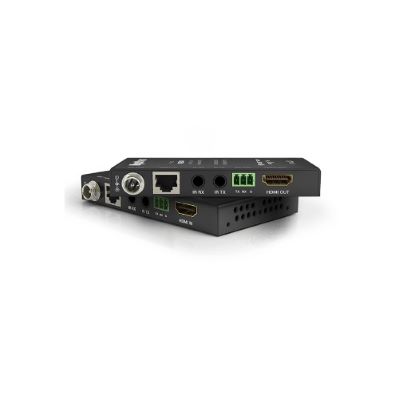

4K 30Hz UHD HDBaseT™ Extender Set

Item # EX-70-G2
Manufacturer Item # EX-70-G2
Log In To View

Sold As: ea
More Products from WyreStorm
  Add to Shopping List
  Save For Later


4K 30Hz UHD HDBaseT™ Extender Set
Super-compact HDBaseT extender set capable of transmitting 4K UHD video and HD audio formats up to 35m/115ft of Cat5e cable. Also compatible with HDCP2.2 protected content, the EX-70-G2 has powerful bi-directional pass-through of CEC, IR and RS-232.
2-way PoH means device can be powered from either end for flexible installation options.

  • Extends 4K UHD video content to 35m/115ft
  • Compatible with 2160p 4:2:0 60Hz or 4:4:4 & RGB 30Hz Content
  • HDCP 2.2 encryption compliant
  • Extends 1080p HDMI signal to 70m/230ft
  • 2ch PCM and multichannel audio supported up to DTS:X and Dolby Atmos
  • 2-Way PoH provides flexible installation options allowing TX or RX only to be powered
  • Bidirectional IR & RS-232 pass-through
  • Automatic EDID Management (copy from sink device)
  • Supports CEC communication between devices
  • Low profile 15mm chassis allows easy installation behind flush-mounted screens
  • Threaded DC socket for secure power connection
  • Visual LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal and HDBaseT™ link between devices


  Product Name4K 30Hz UHD HDBaseT™ Extender Set
  Brand NameWyreStorm
  Mfg #EX-70-G2
  Cube27 cu in
