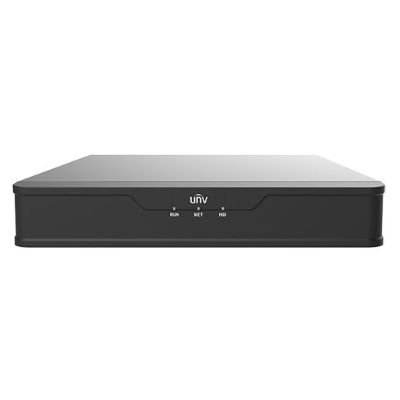

4-Channel 4K Ultra 265 Network Video Recorder - No HDD

Name: 4-Channel 4K Ultra 265 Network Video Recorder - No HDD
Brand: Uniview
SKU: NVR301-04X-P4
Rating: 5 (1 reviews)

Item # NVR301-04X-P4

Manufacturer Item # NVR301-04X-P4

Sold As: ea

More Products from Uniview

Add to Shopping List

Save For Later

Overview

4-Channel 4K Ultra 265 Network Video Recorder - No HDD

The NVR301-04X-P4 from Uniview is a 4-channel Network Video Recorder with a 4K recording resolution that supports Ultra 265, H.265, and H.264 video compression. The single SATA interface supports a hard drive with a maximum capacity of 8 TB. Use the HDMI or VGA ports to output up to two external monitors to view your recording feed. The NVR301-04LX-P4 supports third-party cameras with ONVIF (Profile S, Profile G, Profile T) and RTSP protocols. Capable of detecting intrusions, line crossing, entering and leaving an area, defocus, scene change, object left behind, object removal, and auto-tracing. The NVR requires a power supply of 48 VDC.

Features:

Support Ultra 265/H.265/H.264 video formats
4-channel input
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support 1-ch HDMI, 1-ch VGA
HDMI and VGA simultaneous output
Up to 4K resolution recording
1 SATA HDD up to 8TB
Support cloud upgrade

Specifications

Product Name	4-Channel 4K Ultra 265 Network Video Recorder - No HDD

Brand Name	Uniview

Mfg #	NVR301-04X-P4

Cube	172.58 cu in

Length	9.40 in

Width	10.20 in

Height	1.80 in

Weight	2.2 lbs

Bandwidth (Mbps)	64

Channels	4

Color	White

Compression	Ultra H.265 / H.265 / H.264 / MJPEG

Connectivity	Ethernet

Connector	RJ45

Environment	Indoor

HDD's Bays	1

Operating Voltage	48 VDC

PoE Budget (W)	54

PoE Ports	4

Power Consumption (W)	9

Resolution	8 MP

Video Output Resolution	4K

Video Technology	IP

Documents

NVR301-04X-P4.pdf
