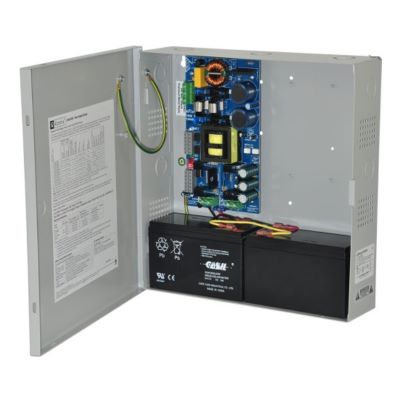

24VDC @ 10A Power Supply/Charger, FAI, Aux Output Altronix EFLOW104N
View Larger

24VDC @ 10A Power Supply/Charger, FAI, Aux Output

Item # EFLOW104N
Manufacturer Item # EFLOW104N

Log In To View
Prices		 Pixel Silver
Sold As: EA
Special Order
Pixel Trans
Pixel Trans
Altronix
More Products from Altronix 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Report Incorrect
Pixel Trans

Overview

Pixel Trans
24VDC @ 10A Power Supply/Charger, FAI, Aux Output
Pixel Trans
eFlow104N is a power supply/charger that converts a 120VAC 60Hz input into a single 24VDC output with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

Features:
  • Input
    • 120VAC, 60Hz, 4.5A
    • Input fuse: 5A/250V
  • Output
    • 24VDC @ 10.0A supply current
    • Auxiliary Power-Limited output rated @ 1A (unswitched)
    • Over Voltage Protection
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries
    • Maximum charge current: 1.0A
    • Automatic switch over to stand-by battery when AC fails
    • Transfer to stand-by battery power is instantaneous with no interruption
    • (Batteries are sold separately)
  • Supervision
    • AC fail supervision (form "C" contacts)
    • Notification trigger is selectable for 30 seconds (factory set) or 2 hours
    • Battery fail & presence supervision (form "C" contacts)
    • Low power shutdown. Shuts down DC output terminals if battery voltage drops below 70-75% (depending on the power supply). Prevents deep battery discharge
  • Fire Alarm Disconnect
    • Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger
  • Short circuit and overload protection
  • Unit is complete with power supply, enclosure, battery leads and cam lock

Specifications

Pixel Trans
  Product Name24VDC @ 10A Power Supply/Charger, FAI, Aux Output
Pixel Silver
  Brand NameAltronix
Pixel Silver
  Mfg #EFLOW104N
Pixel Silver
  Cube1000.8 cu in
Pixel Silver
  Length13.00 in
Pixel Silver
  Width3.25 in
Pixel Silver
  Height13.50 in
Pixel Silver
  Current (A)10
Pixel Silver
  Operating Voltage120 VAC
Pixel Silver
  Output Voltage24 VDC
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf EFLOW104N-Datasheet.pdf
