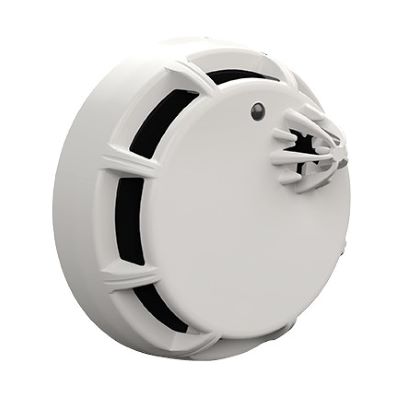

24 VDC Addressable Photoelectric Smoke/Heat Detector Combination

The PAD200-PHD is a listed Analog Addressable smoke sensor and a rate of rise and/or fixed temperature heat sensor compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. The PAD200-PHD is a low profile smoke/heat sensor with a wide sensitivity range. The heat sensing portion utilizes a proven thermistor for accurate and reliable heat detection. The sensor and base (not included) are made of a durable plastic in an off-white color to blend in with the ceiling. Enhanced sensor technology allows the PAD200 Detector Series to comply with the new UL 268 7th edition standards while bringing customers an even higher standard in smoke detection.

Features:

• UL 268 7th Edition
• Selectable Rate of Rise and/or Fixed Heat Detector
• Reliable detection technology
• Wide selectable smoke sensitivity range of 1.0 to 3.5%/foot
• Sensor communicates sensitivity to control panel
• UL listed smoke calibration and sensitivity
• Ambient temperature listing of 32 ° F to 150 ° F
• Optional locking tab to prevent unwanted removal
• Simple DIP switch address setting, no programming tool required
• LED alarm indicator
• Product includes a 5 year warranty
• UUKL Listed for Smoke Control
