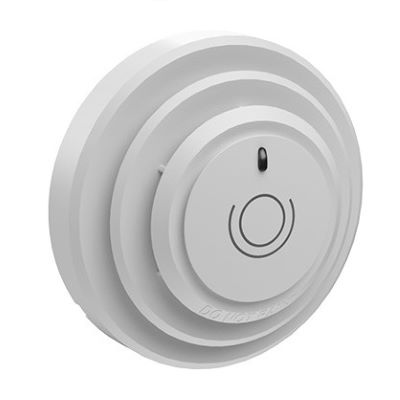

24 VDC Addressable Photoelectric Smoke/Carbon Monoxide Detector

The Photoelectric Smoke detector and the Carbon Monoxide (CO)detector are both listed Analog Addressable detectors compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. The CO sensing portion utilizes a proven electrochemical sensor for accurate detection of CO gas for life safety applications. The photoelectric detector complies with UL 268 7th edition enhanced smoke sensitivity tests.

Features:

• Photoelectric Smoke Detection compliant with UL 268 7th Edition
• Carbon Monoxide (CO) detection compliant with UL 2075
• 10 year Carbon Monoxide detection lifespan with built-in end-of-life indication
• Walk Test mode allows for fast easy validation of CO sensor operation
• Low profile, less than 2 inches with the base
• Wide selectable sensitivity range of 1.1 to 3.5%/foot
• Detector communicates sensitivity to the control panel
• Optional locking tab to prevent unwanted removal
• Simple DIP switch address setting, no programming tool required
• LED Alarm Indicator
• Product includes 5-year warranty
• UUKL Listed for Smoke Control
• Magnetic Test Switch
