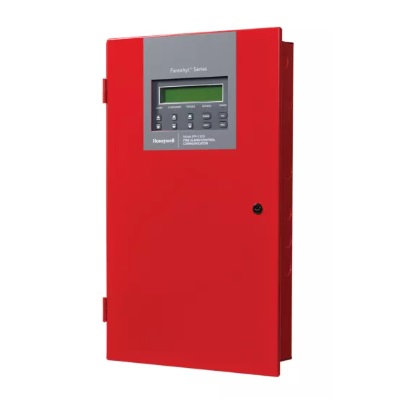

2100 PTIntelligent Fire Alarm Control Panel, Red Cabinet Silent Knight By Honeywell IFP-2100
View Larger

2100 PTIntelligent Fire Alarm Control Panel, Red Cabinet

Item # IFP-2100
Manufacturer Item # IFP-2100

Log In To View
Prices		 Pixel Silver
Sold As: ea
DNR
Pixel Trans
Pixel Trans
Silent Knight By Honeywell
More Products from Silent Knight By Honeywell 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
2100 PTIntelligent Fire Alarm Control Panel, Red Cabinet
Pixel Trans
The IFP-2100 is the latest intelligent addressable FACP (Fire Alarm Control Panel) from Honeywell’s Farenhyt™ line. The FACP has one built-in SLC (signaling line circuit), which can support 159 System Sensor® IDP/SK detectors and 159 IDP/SK modules, or 127 Hochiki® SD protocol devices. Additional SLC loops can be added for a maximum of 2100 (IDP/SK) or 2032 (SD) points per panel.

Features:
  • Complies with UL 864 10th Edition and UL 2572 2nd Edition Standards
  • Expandable SLC loops to 2100 (IDP/SK) or 2032 (SD) point capacity
  • Eight Flexput circuits for NAC outputs or auxiliary power
  • Selectable strobe synchronization for Amseco®, System Sensor, Wheelock®, and Gentex® devices
  • Built-in DACT with IP and optional cellular reporting
  • Built-in USB interface for quick and easy programming
  • JumpStart® auto programming reduces installation time
  • 999 software zones and 999 output groups for flexible design options
  • 23 preset notification cadence patterns (including ANSI® 3.41)
  • Allows up to 63 SBUS devices
  • Four programmable function keys
  • Two programmable relays and one fixed trouble relay
  • Compatible with SWIFT® wireless devices
  • Convenient field-upgradeable firmware
  • Network support for up to 32 sites
  • Network card allows copper network connection with a multi-mode or single-mode fiber connection
  • Real-time clock/calendar with automatic daylight savings control
  • History file with 1,000 event capacity
  • Available in a red or black cabinet
  • Surface mounting or flush mounting cabinet

Specifications

Pixel Trans
  Product Name2100 PTIntelligent Fire Alarm Control Panel, Red Cabinet
Pixel Silver
  Brand NameSilent Knight By Honeywell
Pixel Silver
  Mfg #IFP-2100
Pixel Silver
  Cube1775.14 cu in
Pixel Silver
  Length4.10 in
Pixel Silver
  Width16.40 in
Pixel Silver
  Height26.40 in
Pixel Silver
  Weight33 lbs
Pixel Silver
  ColorRed
Pixel Silver
  Operating Voltage120 / 240 VAC
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf IFP-2100.pdf
