Home » CCTV » IP Cameras » PTZ
Pixel Trans

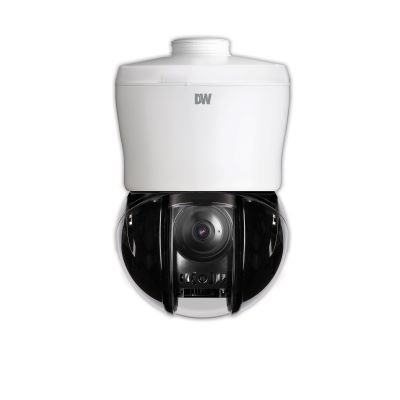

2.1MP H.265 IP PTZ Camera 4.3-129 mm Digital Watchdog DWC-MPTZ230XTW
View Larger

2.1MP H.265 IP PTZ Camera 4.3-129 mm

Item # DWC-MPTZ230XTW
Manufacturer Item # DWC-MPTZ230XTW

Log In To View
Prices
Pixel Silver
Sold As: ea
Special Order
Pixel Trans
Pixel Trans
Digital Watchdog
More Products from Digital Watchdog
Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
2.1MP H.265 IP PTZ Camera 4.3-129 mm
Pixel Trans
This MEGApix® 30x PTZ camera is NDAA-compliant and delivers crystal-clear 2.1MP/1080p resolution at real-time 30fps. The camera features 30x optical zoom, Star-Light Plus™ color in near-total darkness technology, true WDR and Smart IR™ for quality video in any lighting condition, simultaneous H.265/H.264/MJPEG codec support. The IP66- and IK10-rated vandal PTZ housing requires a wall mount, ceiling mount or flush mount, sold separately, to complete the camera’s installation.

Features:
  • 2.1MP/1080p 1/3” image sensor at real-time 30fps
  • Star-Light Plus™ color in near-total darkness technology
  • 4.3~129mm motorized zoom PTZ lens
  • 30x optical zoom
  • True wide dynamic range (WDR)
  • Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
  • Smart DNR™ 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Digital Image Stabilizer (DIS)
  • Programmable privacy zones
  • Backlight Compensation (BLC)
  • Auto white balance (AWB)
  • Motion detection / Two-way audio
  • Pan 0~360° endless, 360° per second pan speed
  • Vector drive technology – pan/tilt motion in the shortest path
  • 255 preset positions / 10 tours
  • Micro SD/SDHC/SDXC class 10 card slot (card not included)
  • Alarm sensor input / Relay output
  • Web server built-in
  • PoE injector included / PoE class5, DC24V and AC24V
  • NDAA compliant
  • IP66 environmental-rated dust-tight and water-resistant
  • IK 10-rated impact-resistant

Specifications

Pixel Trans
  Product Name2.1MP H.265 IP PTZ Camera 4.3-129 mm
Pixel Silver
  Brand NameDigital Watchdog
Pixel Silver
  Mfg #DWC-MPTZ230XTW
Pixel Silver
  Cube476.1 cu in
Pixel Silver
  Height3.13 in
Pixel Silver
  Weight6.17 lbs
Pixel Silver
  ColorBlack / White
Pixel Silver
  CompressionH.265 / H.264 / MJPEG
Pixel Silver
  ConnectivityEthernet
Pixel Silver
  Diameter (In)5.9
Pixel Silver
  EnvironmentOutdoor
Pixel Silver
  FamilyMegaPix
Pixel Silver
  InstallationPole
Pixel Silver
  IR (Ft)200
Pixel Silver
  IR (M)60.96
Pixel Silver
  Lens Size (mm)4.3 - 129
Pixel Silver
  Lens TypeMotorized
Pixel Silver
  Optical Zoom X30
Pixel Silver
  Output Voltage24 VDC / VAC / POE
Pixel Silver
  Power Consumption (W)42
Pixel Silver
  RatingIP66
Pixel Silver
  Resolution2.1 MP
Pixel Silver
  UPC813379011498
Pixel Silver
  VandalIK10
Pixel Silver
  Video TechnologyIP
Pixel Silver
  WDR (Db)120
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf DWC-MPTZ230XTW.pdf
