Home » Infrastructure » Wire & Cable » Standard Security

$18/6 Stranded Shielded Plenum Cable - 500\' Pull Box - Natural Genesis Cable GEN32165512$

View Larger

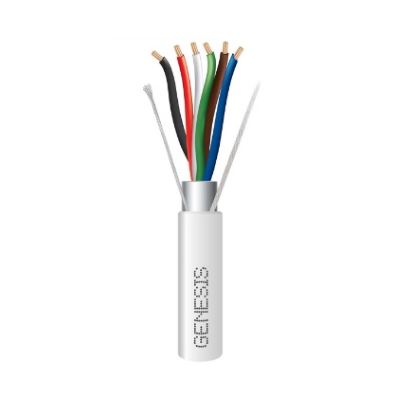

18/6 Stranded Shielded Plenum Cable - 500' Pull Box - Natural

Name: 18/6 Stranded Shielded Plenum Cable - 500 Pull Box - Natural
Brand: Genesis Cable
SKU: GEN32165512
Rating: 5 (1 reviews)

Item # GEN32165512

Manufacturer Item # 32165512

Sold As: each
Special Order

More Products from Genesis Cable

Add to Shopping List

Save For Later

Overview

18/6 Stranded Shielded Plenum Cable - 500' Pull Box - Natural

This Genesis® cable features 6 stranded 18 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications. 500 Pull box, natural.

Features:

Insulation - Plenum PVC
18 AWG 19 Strand Bare Copper
6 conductors
Aluminum Foil/Mylar w/ 24 AWG Tinned-Copper Drain Shielding
CMP, CL3P, FPLP, FT6 Ratings
-20°C to 75°C temperature
300 V Max operating voltage

Specifications

Product Name	18/6 Stranded Shielded Plenum Cable - 500' Pull Box - Natural

Brand Name	Genesis Cable

Mfg #	32165512

Cube	1309.75 cu in

Length	13.00 in

Width	7.75 in

Height	13.00 in

Weight	22.3 lbs

Cable Jacket	Plenum

Color	Natural

Protection	Shielded

Strands / Conductors	6

UPC	619172022613

Wire (Awg)	18

Wire Construction	Stranded

Documents

32165512.pdf
