Home » Infrastructure » Wire & Cable » Standard Security

$18/10 Stranded Shielded Riser Rated Security & Control Cable - 500\' Reel Genesis Cable GEN22185009$

View Larger

18/10 Stranded Shielded Riser Rated Security & Control Cable - 500' Reel

Name: 18/10 Stranded Shielded Riser Rated Security & Control Cable - 500 Reel
Brand: Genesis Cable
SKU: GEN22185009
Rating: 5 (1 reviews)

Item # GEN22185009

Manufacturer Item # 22185009

Sold As: ea
Special Order

More Products from Genesis Cable

Add to Shopping List

Save For Later

Overview

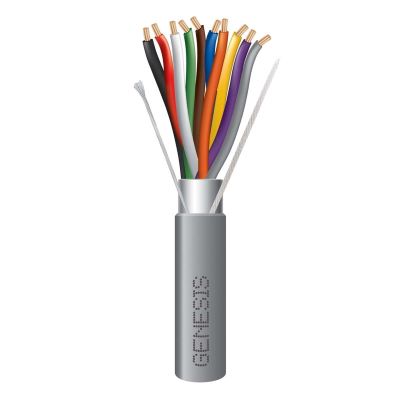

18/10 Stranded Shielded Riser Rated Security & Control Cable - 500' Reel

The Genesis 22185009 cable features 10 stranded copper conductors at 18 AWG and a riser rating. Gray 500' reel.

Features:

Rating: CMR, CL3R, FPLR, FT4, Sunlight Resistant
ETL Listed, RoHS Compliant
18 AWG 19 Stranded Bare Copper
Conductor count: 10
Insulation: Polypropylene (0.006" nom.)
Insulation Colors: Black, Red, White, Green, Brown, Blue, Orange, yellow, Purple, Gray
Lay Length: 4.75" nom.
Jacket: PVC(0.017" nom.)
Operating Voltage: 300 Volt max.
Flame Rating: UL 1666 (Riser); CSA C22.2 No. 2556 (FT4)
Origin: USA

Specifications

Product Name	18/10 Stranded Shielded Riser Rated Security & Control Cable - 500' Reel

Brand Name	Genesis Cable

Mfg #	22185009

Cube	1544.4 cu in

Cable Jacket	Pvc

Color	Gray

Physical Format	Reel

Protection	Shielded

Strands / Conductors	10

UPC	886618110832

Wire (Awg)	18

Wire Construction	Stranded

Documents

22185009.pdf
