Home » Fire » Control Panels » Annunciators

View Larger

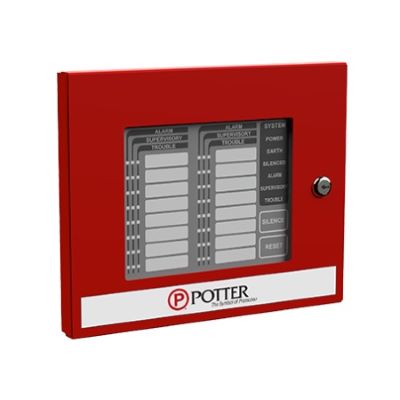

16 Zone LED Annunciator

Name: 16 Zone LED Annunciator
Brand: Potter
SKU: LED-16
Rating: 5 (1 reviews)

Item # LED-16

Manufacturer Item # LED-16

Sold As: ea
Special Order

More Products from Potter

Add to Shopping List

Save For Later

Overview

16 Zone LED Annunciator

The LED-16 is a LED remote annunciator for the PFC-6000 and Potter Plus Series addressable fire control panels. The LED-16 communicates using a RS-485 connection to the main panel providing zone specific indication of Alarm, Supervisory, Trouble conditions.The LED-16 features 2 slide-in labels allowing each of the 16 zones to be customized for any application. It can be mounted on a single gang electrical box or a four-square electrical box. The annunciator utilizes a sheet metal enclosure secured with a Potter lock.

Features:

Capable of displaying alarms, supervisory, trouble status for 16 zones
System Silence and Reset buttons
Common LEDs for status indication
Maximum 31 LED-16s for: PFC-6800, P400(R), IPA-4000, and AFC-1000.
Maximum 10 LED-16s for: PFC-6030/6075(R)/6200, P100/200/300, IPA-60, IPA-100, AFC50, AFC/ARC-100 and PFC-4064
Maximum P-Link wire length of 6,500 feet
Available in four colors
Product includes a 5 year warranty
UUKL Listed for Smoke Control

Specifications

Product Name	16 Zone LED Annunciator

Brand Name	Potter

Mfg #	LED-16

Cube	329.48 cu in

Documents

LED-16-Datasheet.pdf
