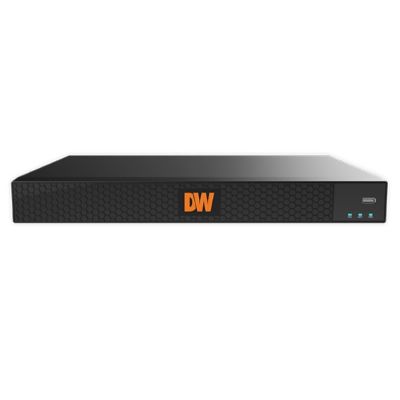

16-Channel 4K Universal HD over Coax Analog to IP Encoder

4K Encoder, Supports UHDoC HD-Analog, HD-CVI,DH-TVI and CVBS, 16ch, Streaming 4K at 8fps, 5MP at 12fps, 4MP at 15fps and up to 2.1MP/1080P at 30fps, simultaneous H.265-H.264 streaming, 8 audio In, 1 audio out, two way audio through DW Spectrum IPVMS, 16 Alarm In, 4 Alarm Out, OSD and PTZ Via UTC, video outputs(True HD,VGA,BNC), ONVIF conformant, profile S, NDAA compliant, 2 year warranty. NOTE: Works with DW Spectrum IPVMS recording license( Requires DW-SPCP16LSC016 or DW-SPCP04LSC004), Includes rack ears.

Features:

• The most cost-effective path to IP
• Universal HD over Coax® HD-Analog, HD-TVI, HD-CVI and CVBS signal support
• Connect your analog cameras to DW Spectrum® IPVMS
• Convert up to 16 analog signals to 4K IP video streams
• Local video output for local display
• Streaming 4K at 8fps, 5MP at 12fps, 4MP at 15fps and up to 2.1MP/1080P at 30fps
• Simultaneous H.265, H.264 streaming
• Works with DW Spectrum® IPVMS recording license (requires DW-SPCP16LSC016 or DW-SPCP04LSC004)
• Motion detection support
• 8 audio inputs, 1 audio output
• Two-way audio through DW Spectrum IPVMS
• OSD and PTZ control via coax (UTC)
• 1x RS-485 Interface for PTZ control
• Search and playback from DW Spectrum® IPVMS
• Frame rate and bandwidth control
• 16 alarm inputs, 4 alarm outputs
• Event notifications via email with image
