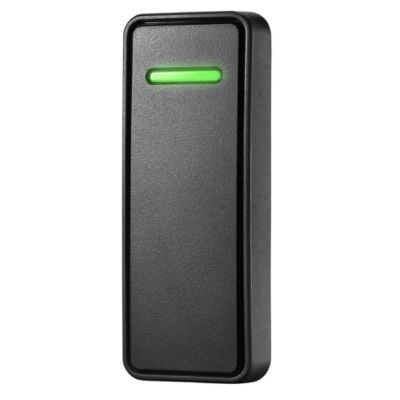

Name: 125 kHz Reader for Indoor and Outdoor Installations
Brand: Linear
SKU: NBT125-W
Rating: 5 (1 reviews)

Overview

125 kHz Reader for Indoor and Outdoor Installations

The NBT125-W supports all Linear 125 kHz cards & fobs, and supports most cards & fobs made by HID, AWID and Farpointe (HAF). NBT125-W outputs reader-to-controller data in Wiegand format, making it compatible with a vast majority of existing access control panels. IP67 rated for indoor and outdoor installations.
2-N-1: Includes single-gang and mullion mounting hardware in the box.

Features:

Frequency: 125 kHz (contactless prox)
Mounting: A single reader for metal door and windows frames, single-gang wall boxes, and flat surfaces.
Dimensions (Mullion): 1.48″ W x 4.74″ H x 0.54″ D (37.5 mm x 120 mm x 13.7 mm)
Dimensions (Single-gang): 2.99″ W x 4.74″ H x 0.54″ D (76.2 mm x 120 mm x 13.7 mm)
Certifications: FCC, ICC, CE, UL Standard 2942, IP67
Read Range: Up to 3 inches (76 mm)
Cabling: 24 AWG minimum, multiconductor, stranded, with an overall foil shield
Supported Data Output: Wiegand
Operating Temperature: –40° F to 149° F (–40° C to +65° C)
Audio Tone Beeper: Included standard
Ratings: IP67 Rated for Indoor & Outdoor Installations. Electronics sealed in weather- and tamper-resistant epoxy potting
Warranty: Limited lifetime
