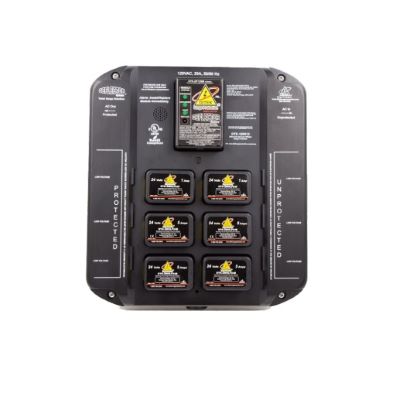

120VAC & Low Voltage Surge Protective Device Ditek DTK-120X12
View Larger

120VAC & Low Voltage Surge Protective Device

Item # DTK-120X12
Manufacturer Item # DTK-120X12

Log In To View
Prices		 Pixel Silver
Sold As: ea
Special Order
Pixel Trans
Pixel Trans
Ditek
More Products from Ditek 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
120VAC & Low Voltage Surge Protective Device
Pixel Trans
DITEK’s DTK-120X12 sets a new standard for 120VAC power and low voltage surge protection. It will protect your system power and up to twelve (12) pairs of SLC, IDC/PIV, NAC, network or dialer circuits. This combo unit comes equipped with a DTK-DF120M, 120VAC, replaceable surge protection module and a 6-position mounting base for replaceable, low voltage surge modules.

Features:
  • 120VAC power surge protection with audible alarm and Form C dry contacts for remote monitoring of surge protection status
  • 6-position mounting base for 2MHLP/2MHTP modules, protects up to (12) SLC, NAC, IDC, PIV, network or dialer circuits (modules must be ordered separately)
  • Low voltage module cover ships blank to allow for application of installation company logo sticker
  • Audible alarm can be silenced via the included time delay switch (24 hours)
  • 3/4" NPT pre-drilled holes for AC power conduit
  • (1) 3/4" NPT and (2) 1/2" NPT pre-drilled holes for low voltage wiring conduit
  • UL1449 Listed Type 2 SPD
  • UL1283 Listed EMI/RFI

Specifications

Pixel Trans
  Product Name120VAC & Low Voltage Surge Protective Device
Pixel Silver
  Brand NameDitek
Pixel Silver
  Mfg #DTK-120X12
Pixel Silver
  Cube269.1 cu in
Pixel Silver
  Length11.50 in
Pixel Silver
  Width10.00 in
Pixel Silver
  Height2.34 in
Pixel Silver
  Weight3.7 lbs
Pixel Silver
  UPC782980521224
