Home » Power & Batteries » Power Supplies » Wall

View Larger

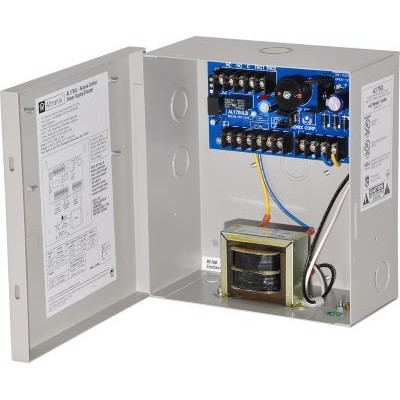

12/24VDC 1.75A Switching Power Supply/Charger

Name: 12/24VDC 1.75A Switching Power Supply/Charger
Brand: Altronix
SKU: AL175UL
Rating: 5 (1 reviews)

Item # AL175UL

Manufacturer Item # AL175UL

Sold As: EA

More Products from Altronix

Add to Shopping List

Save For Later

Overview

12/24VDC 1.75A Switching Power Supply/Charger

AL175UL switching power supply/charger converts a 115VAC 60Hz input into two (2) individually PTC protected auto-resettable 12VDC or 24VDC outputs. 1.75A continuous max current.

Features:

Input 115VAC, 60Hz, 0.6A.
Access control trigger input
12VDC or 24VDC selectable outputs
1.75A supply current output
Two (2) Class 2 Rated power limited outputs
Fail-Safe/Fail-Secure lock output (switched)
Auxiliary power output (unswitched)
PTC protected outputs, rated @ 2.5A
Filtered and electronically regulated output
Short circuit and thermal overload protection

Specifications

Product Name	12/24VDC 1.75A Switching Power Supply/Charger

Brand Name	Altronix

Mfg #	AL175UL

Cube	288 cu in

Length	7.50 in

Width	3.50 in

Height	8.50 in

Weight	5.1 lbs

Current (A)	1.75

Environment	Indoor

Family	Access

Operating Voltage	120 VAC

Output Voltage	12 / 24 VDC

Outputs	2

Protection	PTC

Documents

AL175UL.pdf
