Home » Power & Batteries » Power Supplies » Board Only

View Larger

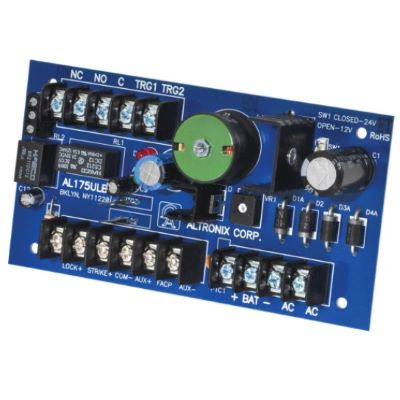

12/24 VDC 1.75A Access Control Power Supply Board - 2 PTC Class 2 Outputs

Name: 12/24 VDC 1.75A Access Control Power Supply Board - 2 PTC Class 2 Outputs
Brand: Altronix
SKU: AL175ULB
Rating: 5 (1 reviews)

Item # AL175ULB

Manufacturer Item # AL175ULB

Sold As: EA
Special Order

More Products from Altronix

Add to Shopping List

Save For Later

Overview

12/24 VDC 1.75A Access Control Power Supply Board - 2 PTC Class 2 Outputs

AL175ULB is a power-limited power supply/charger that converts a 24VAC input into two (2) individual PTC protected 12VDC or 24VDC outputs (see specifications). It is intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels.

Features:

Input Voltage: 24VAC/40VA. Class 2 transformer
Input Trigger: Access control trigger input
Output Voltage: 12 VDC or 24 VDC selectable
Output Current: 12 VDC @ 1.75 A or 24 VDC @ 0.9A continuous max
Built-in charger for sealed lead acid or gel type batteries
Automatic switch over to stand-by battery when AC fails
Maximum charge current: 0.4A
AC fail supervision (form "C" contacts)
Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching)
AC input and DC output LED indicators.

Specifications

Product Name	12/24 VDC 1.75A Access Control Power Supply Board - 2 PTC Class 2 Outputs

Brand Name	Altronix

Mfg #	AL175ULB

Cube	33.06 cu in

Length	5.80 in

Width	3.80 in

Height	1.50 in

Current (A)	1.75

Operating Voltage	24 VAC

Output Voltage	12 / 24 VDC

Documents

AL175ULB.pdf
