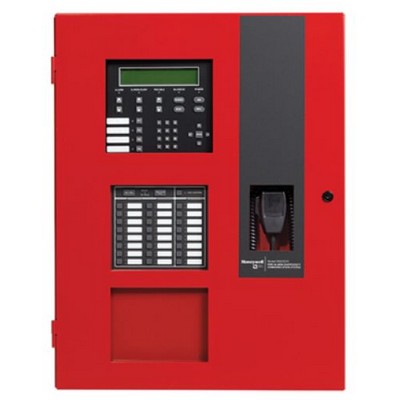

1110-Pt Addressable FACP & EVS Silent Knight By Honeywell SK6820EVS
View Larger

1110-Pt Addressable FACP & EVS

Item # SK6820EVS
Manufacturer Item # 6820EVS

Log In To View
Prices		 Pixel Silver
Sold As: EA
Pixel Trans
Pixel Trans
Silent Knight By Honeywell
More Products from Silent Knight By Honeywell 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
1110-Pt Addressable FACP & EVS
Pixel Trans
Maximum 1,110 point combination addressable fire alarm control and emergency voice system panel. Includes connected panel options, enhanced communications, wireless detection and other advanced features. (Replaces the 5820XL-EVS).

Features:
  • Meets standards for Emergency Communication and Mass Notification Systems (UL2572, NFPA72 2010, UFC 4-021-01)
  • Connect up to 17 panels with convenient single point communications. Copper wire or fiber optic cable panel connectivity can be used within the same linked system
  • Multiple Signal Line Circuits (SLCs) can be used within one system limited by maximum available points
  • Expandable to 1000 Watts of power using distributed amplifiers
  • 16 built-in speaker group switches; expandable to 32
  • 15 recordable one minute messages can be mapped to eight different EVS buttons.
  • Four programmable buttons; 4x 20 annunciator with 80 character display and large easy-use keypad
  • Can select EVS message as priority over fire
  • Built-in dual path IP and POTs communication for reliable dual path backup
  • Built-in USB interface for convenient and speedy programming and convenient field-upgradeable firmware
  • SWIFT® capable for wireless detection
  • Supports up to 16 remote annunciators

Specifications

Pixel Trans
  Product Name1110-Pt Addressable FACP & EVS
Pixel Silver
  Brand NameSilent Knight By Honeywell
Pixel Silver
  Mfg #6820EVS
Pixel Silver
  Length21.60 in
Pixel Silver
  Width5.10 in
Pixel Silver
  Height28.10 in
Pixel Silver
  ColorRed
Pixel Silver
  Current (A)6
Pixel Silver
  NAC's6
Pixel Silver
  Operating Voltage120 VAC
Pixel Silver
  UPC783196014234
Pixel Silver
  Zones1100
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf 6820EVS.pdf
