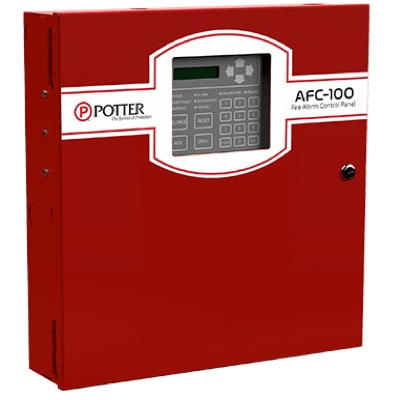

100-PT Addressable Fire Alarm Control Panel

The AFC-100 is an analog/addressable releasing fire alarm system with a total system capacity of 100 addresses. Additional capacity on the system is achieved using multi-point SLC modules. The control panel utilizes the exclusive Potter protocol that includes a complete line of sensors and modules. Each SLC may be comprised of any combination of smoke sensor, heat detectors or modules and allows for a total of 50 ohms of impedance and may use any wire compliant with the National Electrical Code (NEC).

Features:

• 100 addresses available on this analog addressable system
• Additional system capacity achieved via multi-point SLC modules
• 99 software zones
• NFPA 72 Compliant Smoke Sensitivity Test Built-In
• System Operates as Class A or Class B for SLC, P-Link and NACs
• 5 Amp Power Supply, Expandable to 310 amps
• 2 NACS, Regulated, Rated at 3 Amps each, expandable to 188
• 2 Input/Output (I/O) Circuits for system flexibility rated at 1 Amp each
• Strobe Synchronization and System Wide Sync for Gentex®, AMSECO®, Cooper Wheelock® and System Sensor® strobes
• Dedicated Alarm, Supervisory and Trouble Relays
• 4,000 Event History Buffer
• Optional two line DACT with UD-2000 that can report General, Zone or Point Information
• Built in IP Communicator
• Ethernet Port for Programming and Network Connectivity
• E-Mail System Status, Reports and Event Information
• Product includes 5 year warranty
