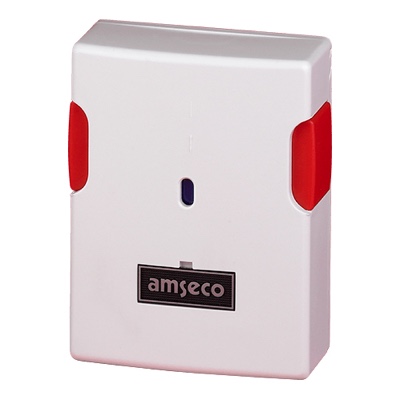

Dual Button Hold-Up Switch

Name: Dual Button Hold-Up Switch
Brand: Potter
SKU: HUSD-15BL
Rating: 5 (1 reviews)

Item # HUSD-15BL

Manufacturer Item # HUSD-15BL

Sold As: EA

More Products from Potter

Add to Shopping List

Save For Later

Overview

Dual Button Hold-Up Switch

The HUSD-15B Series is a Form C (SPDT), dual button hold-up switch that is designed to generate an alarm condition only when both buttons are pressed simultaneously, thus preventing accidental triggering. The housing of this series is specially designed with a status window, red (alarm) and blue (armed), to verify the switch condition.

Features:

Dual button activation to eliminate accidental triggering
SPDT transfer contact for supervised loop
Terminal strip with three wire terminals
Tamper protected switch mechanism using UL listed microswitch
Concealed mounting screw
Status window indicator
White plastic case housing
HUSD-15BL latching button,tool reset (included) HUSD-15BM momentary button, auto-reset

Specifications

Product Name	Dual Button Hold-Up Switch

Brand Name	Potter

Mfg #	HUSD-15BL

Cube	18 cu in

Length	2.70 in

Width	2.10 in

Height	1.00 in
